Scanspeak R2904/700005 Tweeter - Revelator Range
A product datasheet can be downloaded from the Product Description page.

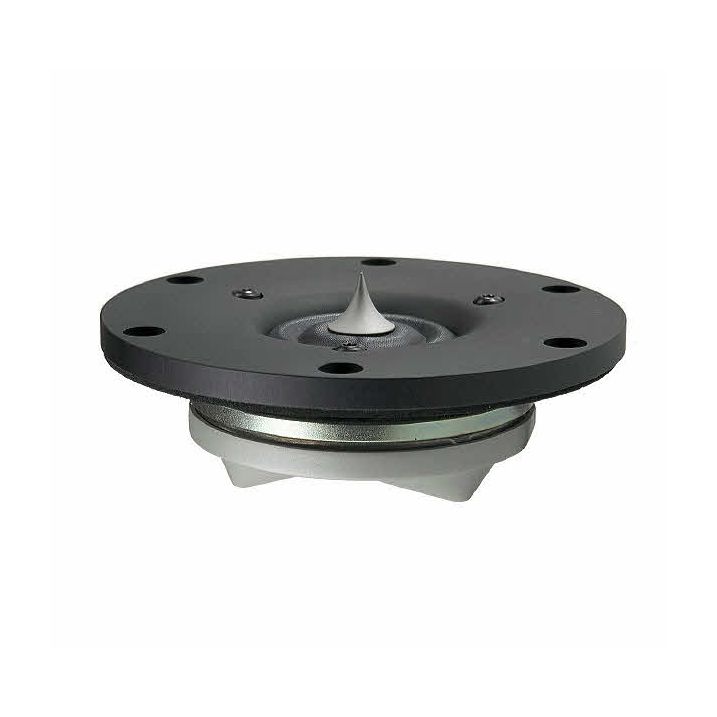

Scanspeak R2904/700005 Revelator tweeter, a member of the world-famous premium Revelator Range. Black anodised and machined aluminium face plate, 6 mounting holes.
This tweeter features the famous Revelator 1" Ring Dome Diaphragm with a patented Phase Plug Design, non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion and very low distortion and power compression, optimised air flow in the chambers.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Driver Fs | 520 Hz |
---|---|
Driver Impedance | 4 ohms |
Driver Power | 160W |
Driver Qes | 0.38 |
Driver Qms | 2.9 |
Driver Qts | 0.33 |
Driver Rdc | 3.7 ohm |
Scanspeak Driver Range | Scanspeak Revelator |
Driver Sens SPL | 94.5 dB |
Driver Vas | 0.01 l |
