Product Description
Details

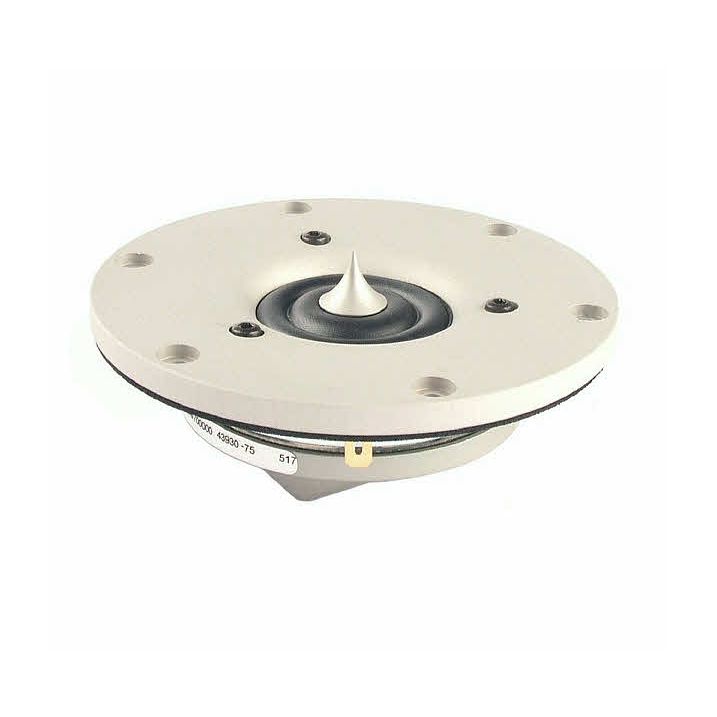

Scanspeak R2904/700000 Revelator tweeter, a member of the world-famous premium Revelator Range. Silver anodised and machined aluminium face plate, 6 mounting holes.
This tweeter features the famous Revelator 1" Ring Dome Diaphragm with a patented Phase Plug Design, non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion and very low distortion and power compression, optimised air flow in the chambers.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Revelator |
|---|---|
| Nominal Impedance | 4 ohms |
| Nominal Power RMS | 160W |
| Vas ( l) | 0.01 l |
| Nominal Free Air Resonance Fs | 520 Hz |
| Sensitivity (2.83V/1m) | 94.5 dB |
| Nominal Rdc | 3.7 ohm |
| Qes | 0.38 |
| Qms | 2.9 |
| Qts | 0.33 |
