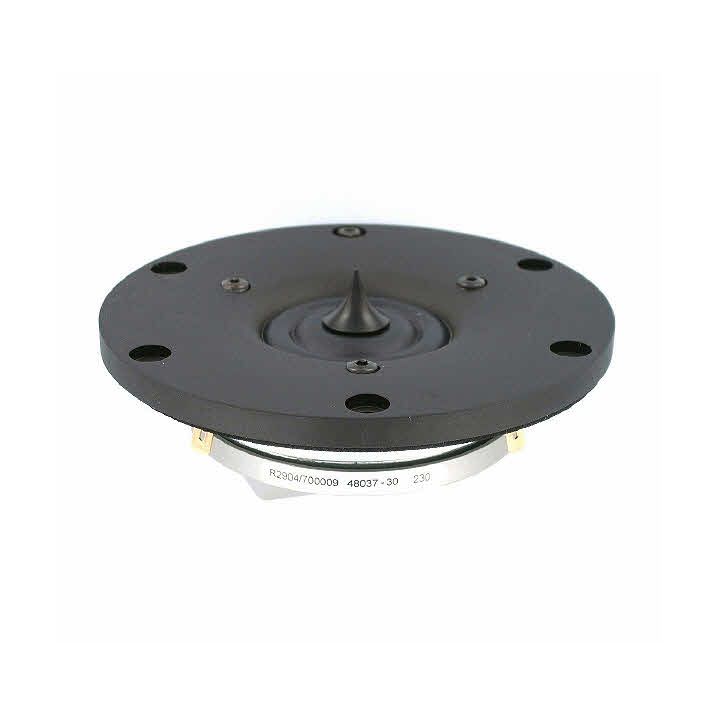

Scanspeak R2904/700009 Revelator tweeter, a member of the world-famous premium Revelator Range. Black anodised and machined aluminium face plate and Black Phase Plug, 6 mounting holes.
This tweeter features the famous Revelator 1" Ring Dome Diaphragm with a patented Phase Plug Design, non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion and very low distortion and power compression, optimised air flow in the chambers.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Revelator|
|Nominal Impedance||4 ohms|
|Nominal Power RMS||160W|
|Vas ( l)||0.01 l|
|Nominal Free Air Resonance Fs||520 Hz|
|Sensitivity (2.83V/1m)||94.5 dB|
|Nominal Rdc||3.7 ohm|
