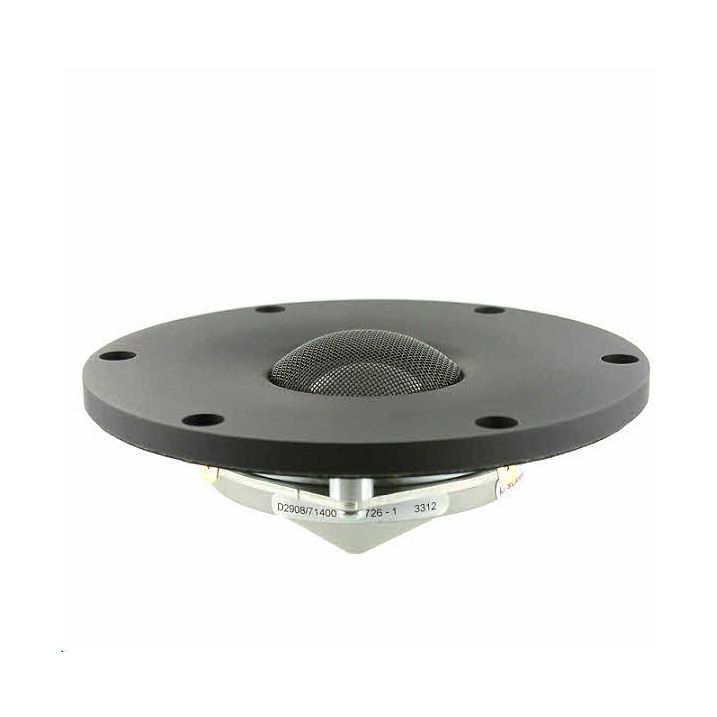

Scanspeak D2908/714000 Revelator tweeter, the premier member of the world-famous premium Revelator Range giving an extraordinary level of definition and depth. Black anodised and machined 120mm aluminium face plate and beryllium diaphragm, titanium voice coil former, 6 mounting holes.
This tweeter also features a non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion and very low distortion and power compression, optimised air flow in the chambers.
Delivery is normally 5-7 working days if not in stock. Priced per unit. Supplied in matched pairs (2 units) only.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Revelator|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||130W|
|Vas ( l)||0.02 l|
|Nominal Free Air Resonance Fs||534 Hz|
|Sensitivity (2.83V/1m)||92.0 dB|
|Nominal Rdc||5.7 ohm|
