Product Description
Details

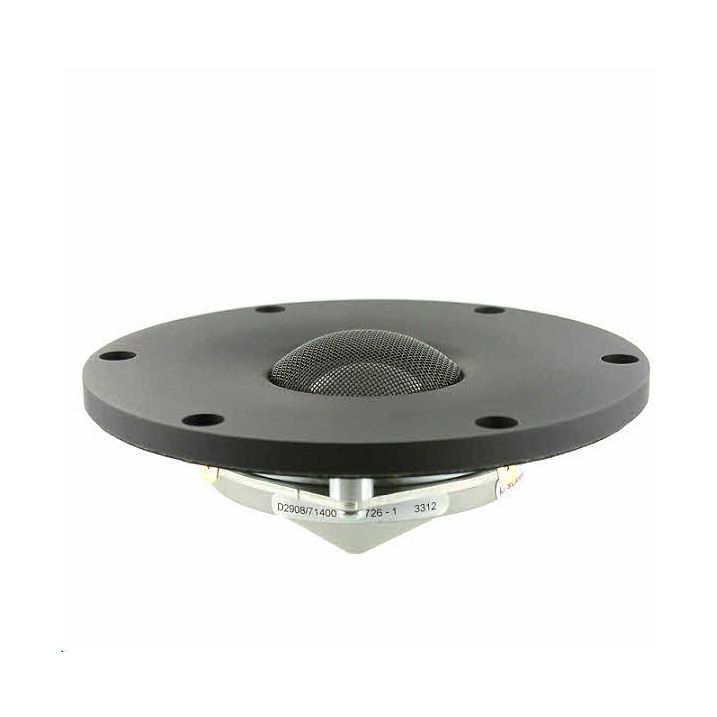

Scanspeak D2908/714000 Revelator tweeter, the premier member of the world-famous premium Revelator Range giving an extraordinary level of definition and depth. Black anodised and machined 120mm aluminium face plate and beryllium diaphragm, titanium voice coil former, 6 mounting holes.
This tweeter also features a non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion and very low distortion and power compression, optimised air flow in the chambers.
Delivery is normally 5-7 working days if not in stock. Priced per unit. Supplied in matched pairs (2 units) only.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Revelator |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 130W |
| Vas ( l) | 0.02 l |
| Nominal Free Air Resonance Fs | 534 Hz |
| Sensitivity (2.83V/1m) | 92.0 dB |
| Nominal Rdc | 5.7 ohm |
| Qes | 0.5 |
| Qms | 7.3 |
| Qts | 0.47 |
