Product Description
Details

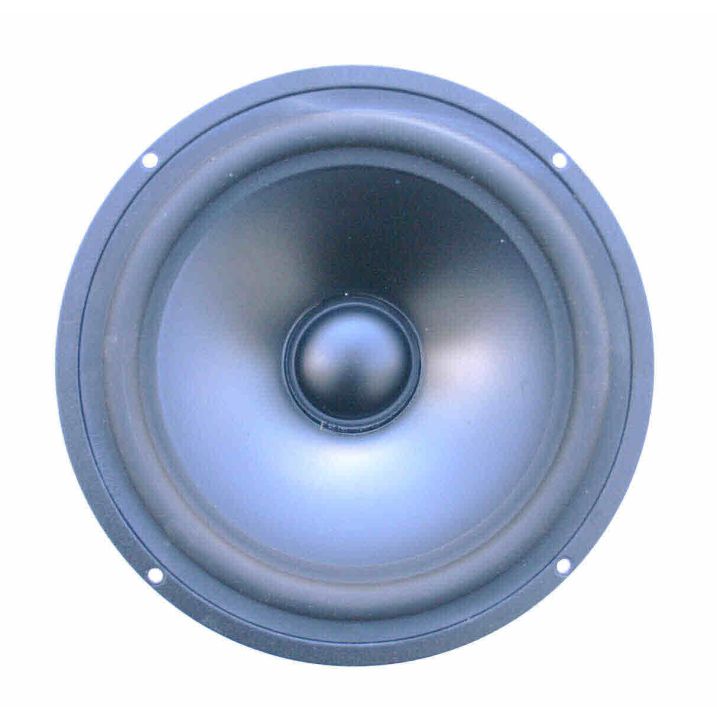

P21REY/DD H360-08 is an 8" High Fidelity woofer with SEAS patented Dynamic Damping (DD), which improves low bass transient behaviour at high power levels. Injection moulded metal chassis. Careful matching between a polypropylene cone, a soft PVC dust cap and a low loss rubber surround yields a smooth frequency response with a well behaved roll off.
The magnet system has a T-shaped cross section pole piece for low modulation distortion. A relatively large voice coil diameter gives a high power handling capacity. The extremely large magnet gives a very high efficiency and low Q.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 80 |
| Vas ( l) | 68.9 |
| Nominal Free Air Resonance Fs | 33 Hz |
| Sensitivity (2.83V/1m) | 92.0 dB |
| Nominal Rdc | 6.10 ohms |
| Qes | 0.34 |
| Qms | 2.36 |
| Qts | 0.29 |
