Product Description
Details

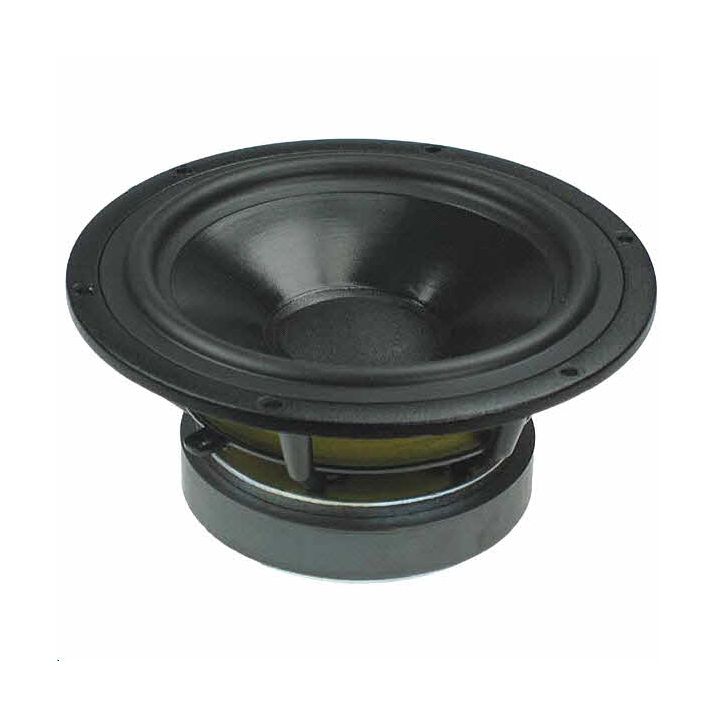

Seas CA18RNX H1270-08 Woofer is a renowned Seas Long Throw Woofer or MidWoofer with a coated 6.5" classic paper cone with Phase Plug giving a very smooth extended response.
The large magnet motor with a bumped back plate combined with a very long light weight 39mm copper clad aluminum voice coil gives excellent excursion (Xmax 22mm p/p) , low distortion and good transient responses.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 80 |
| Vas ( l) | 33 |
| Nominal Free Air Resonance Fs | 35 Hz |
| Sensitivity (2.83V/1m) | 88.5 dB |
| Nominal Rdc | 5.80 ohms |
| Qes | 0.37 |
| Qms | 1.9 |
| Qts | 0.31 |
