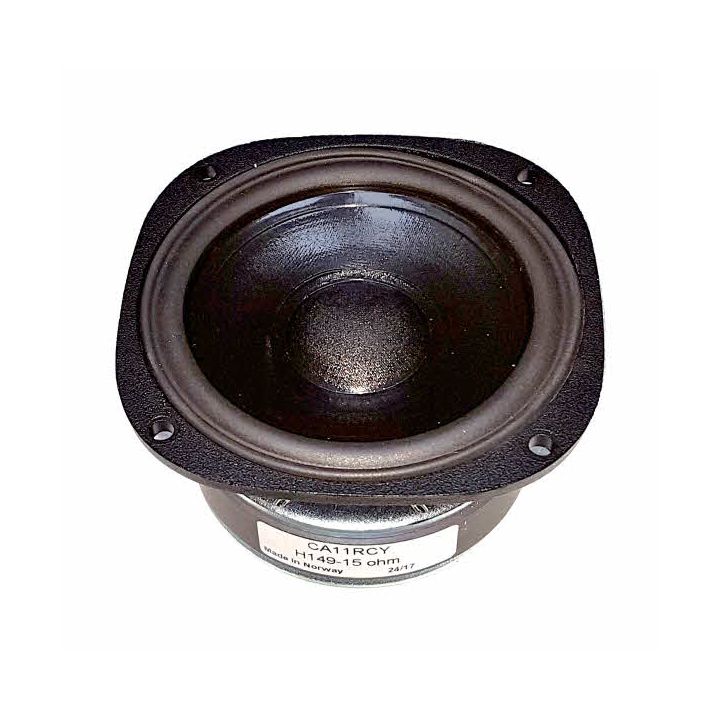

Seas CA11RCY H0149-15 - NEW 2017 MADE PROAC MINI TOWER EBT REPLACEMENT is a 15 OHM Seas 4.5" Woofer with a stiff and stable injection moulded metal chassis. Small batch has been especially made for Falcon Acoustics. A natural rubber surround and hand-coated paper cone with low resonances and distortion. Excellent linearity is achieved with a large magnet system and a symmetrical driving force accomplished with a special winding technique for the 26mm voice coil. A very large magnet system provides a reasonable efficiency and a low Q.
A 8 Ohm Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Prestige|
|Nominal Impedance||15 ohms|
|Nominal Power RMS||60|
|Vas ( l)||n/a|
|Nominal Free Air Resonance Fs||n/a|
|Sensitivity (2.83V/1m)||84.0 dB|
|Nominal Rdc||13.40 ohms|
Does the job by martin
Had to replace one damaged cone thanks to my wife’s over enthusiastic dusting .Ended up replacing all 4 units . They have brought my speakers back to life .Get them before they go ! (Posted on 13/04/2021)
