Scanspeak R3004/602010 Tweeter - Illuminator Range Zoom

Scanspeak R3004/602010 Tweeter - Illuminator Range

Be the first to review this product

SKU: 7360221 R3004/602010

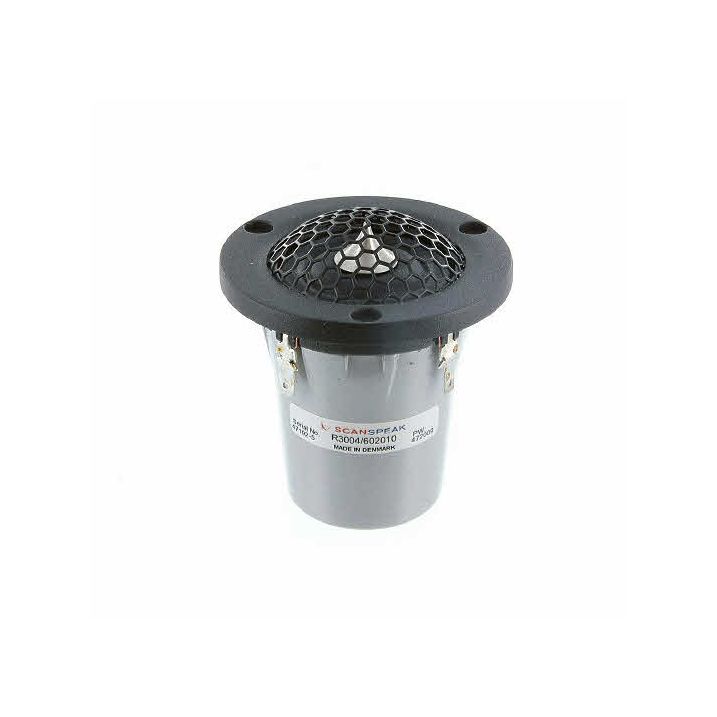

Scanspeak R3004/602010 Tweeter - Illuminator Range

A product datasheet can be downloaded from the Product Description page.

Availability: In stock

Excl. Vat: £120.10 Incl. Vat: £144.12
Product Description


    Scanspeak R3004/602010 Illuminator Tweeter, a member of the superb Illuminator Range. Very compact and excellent for small speaker systems and car audio applications. 3 mounting holes. Black die-cast anodised aluminum face plate and black protective grille over the 1" Ring Dome with Phase Plug. Non resonant Aluminum rear chamber. Low Fs.

    This tweeter features the “SD-2" Neodymium large magnet symmetric drive motor system. These compact tweeters are fully comparable both in sound output and quality to the larger members of the Illuminator or Revelator ranges.

    Delivery is normally 7-10 working days if not in stock.

    A Product Datasheet is available below.

    Scanspeak R3004/602010 datasheet

Additional Information

    Additional Information

    Scanspeak Range Scanspeak Illuminator
    Nominal Impedance 4 ohms
    Nominal Power RMS 130W
    Vas ( l) 0.02 l
    Nominal Free Air Resonance Fs 420 Hz
    Sensitivity (2.83V/1m) 87.4 dB
    Nominal Rdc 3.8 ohm
    Qes 1.03
    Qms 2.57
    Qts 0.74
