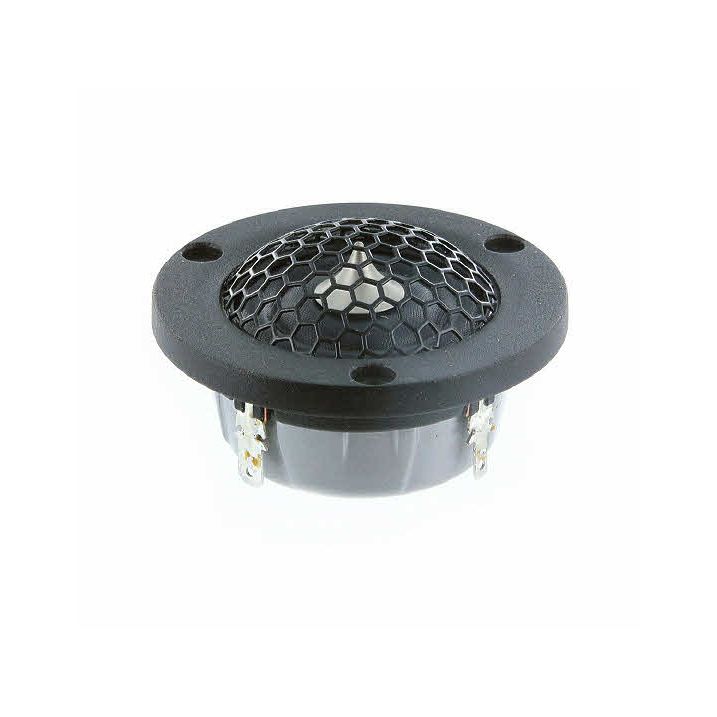

Scanspeak R3004/602000 Illuminator Tweeter, a member of the superb Illuminator Range. Very compact and excellent for small speaker systems and car audio applications. 3 mounting holes. Black die-cast anodised aluminum face plate and black protective grille over the 1" Ring Dome with Phase Plug. Non resonant Aluminum rear chamber.
This tweeter features the “SD-2" Neodymium large magnet symmetric drive motor system. These compact tweeters are fully comparable both in sound output and quality to the larger members of the Illuminator or Revelator ranges.
Delivery is normally 7-10 working days if not in stock. Supplied in pairs (2 units) only.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Illuminator|
|Nominal Impedance||4 ohms|
|Nominal Power RMS||130W|
|Vas ( l)||0.01 l|
|Nominal Free Air Resonance Fs||625 Hz|
|Sensitivity (2.83V/1m)||87.4 dB|
|Nominal Rdc||3.8 ohm|
