Seas CA26RE/P H1562-08 woofer 1 unit £49.95 excl. VAT to clear. SEAS BACK CATALOGUE 10" coated paper cone, Al. former, low loss rubber surround. Phase Plug, HT coil.
A product datasheet can be downloaded from the Product Description page.

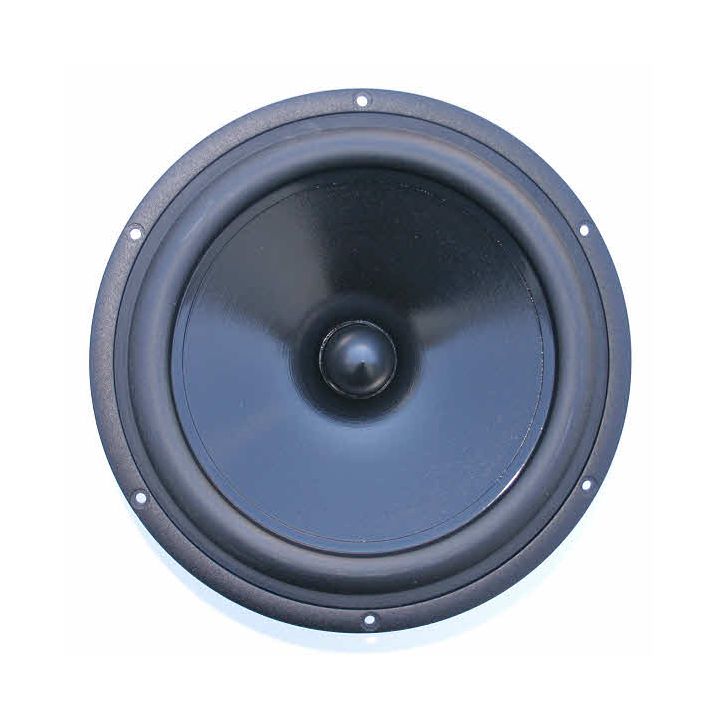

SEAS CA26RE/P H1562-08 is a classic 10” woofer with a hand coated paper cone and matching natural rubber Low Loss surround which produces a well behaved roll off characteristic and reduce potential resonance problems. A 1.5” high temperature voice coil with aluminium coil former gives high power handling and reduced power compression.
The phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.
The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Driver Fs | 26 Hz |
---|---|
Driver Impedance | 8 ohms |
Driver Power | 100 |
Driver Qes | 0.71 |
Driver Qms | 3.76 |
Driver Qts | 0.59 |
Driver Rdc | 6.32 ohms |
Driver Sens SPL | 88.5 dB |
Driver Vas | 129 |
SEAS Driver Series | Seas Prestige |
