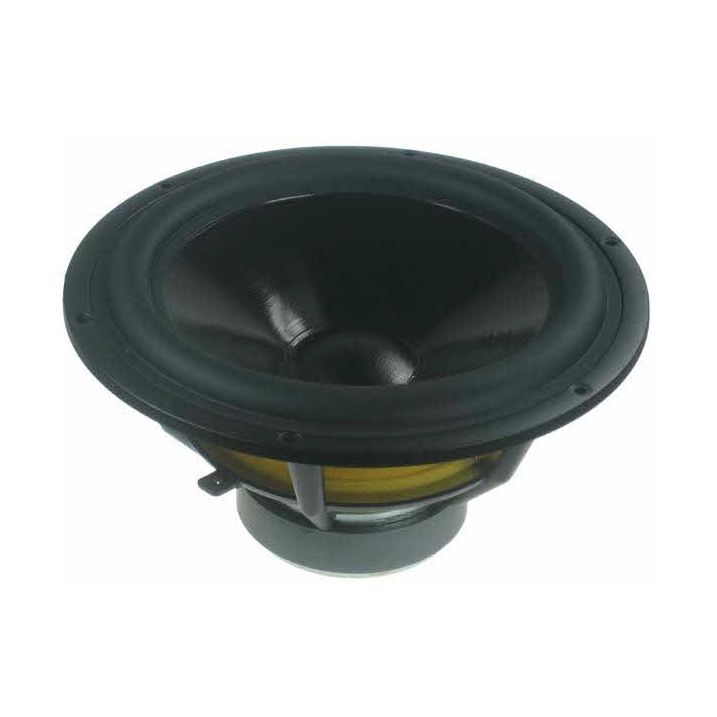

SEAS CA26RE4X H1316 is a classic 10” 8 ohm driver, featuring a manually coated paper cone and matching natural rubber surround. Together these produce an “easy to use” unit with a smooth response and reduce potential resonance problems.
A four layer voice coil provides a well behaved roll off characteristic. The large magnet system gives good sensitivity and transient response.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the
spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 80 |
| Vas ( l) | 164 |
| Nominal Free Air Resonance Fs | 25 Hz |
| Sensitivity (2.83V/1m) | 91.0 dB |
| Nominal Rdc | 6.10 ohms |
| Qes | 0.3 |
| Qms | 3.99 |
| Qts | 0.38 |
