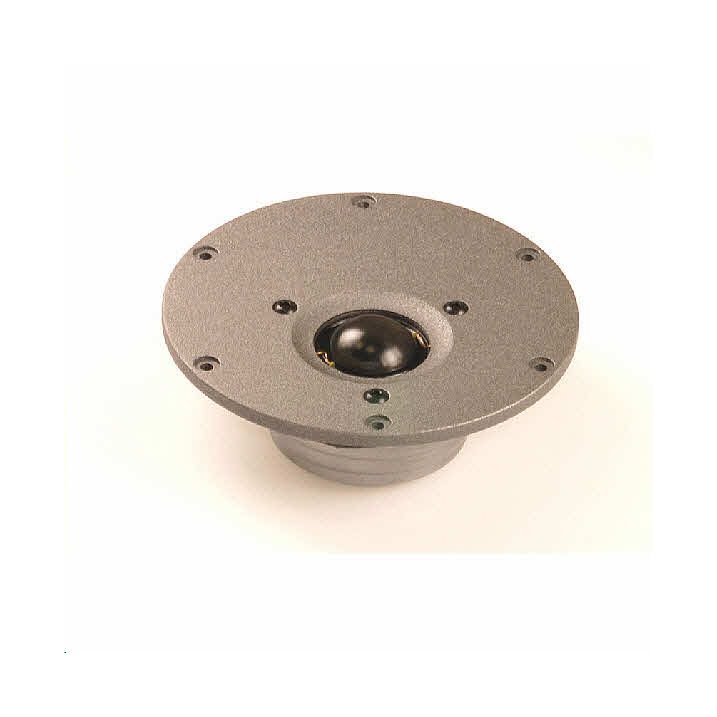

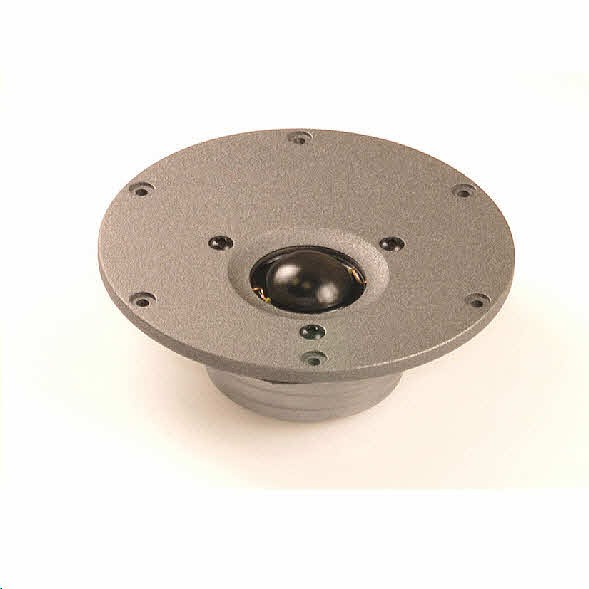

Morel ST 1308 Tweeter
Double click on above image to view full picture
More Views
Additional Information
| Morel Driver Series | Morel Supreme |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 220W |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 680 |
| Sensitivity (2.83V/1m) | 91.5 dB |
| Nominal Rdc | 5.20 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
Details
Morel ST 1308 Tweeter is a 130mm faceplate diameter soft dome tweeter with a 28mm Hexatech aluminum voice coil and replaceable Acuflex dome/voice coil assembly. It features Morels’ IDR™ Improved Dispersion Recess 3mm aluminum face plate giving a semi-horn profile with much improved off-axis response, underhung Neodymium magnet motor, akuminum rear chamber, ferrofluid cooling and high power handling. Priced individually, supplied as matched pair.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
