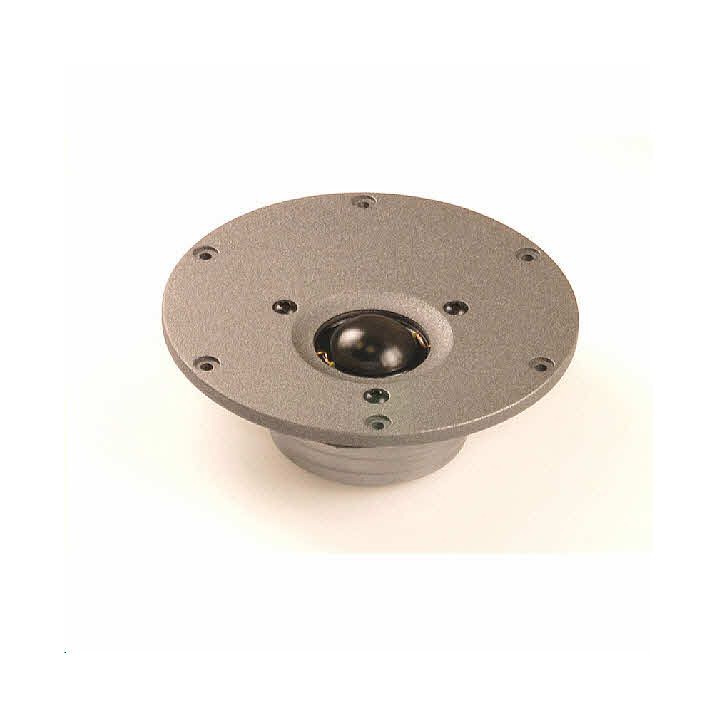

Morel ST 1308 Tweeter is a 130mm faceplate diameter soft dome tweeter with a 28mm Hexatech aluminum voice coil and replaceable Acuflex dome/voice coil assembly. It features Morels’ IDR™ Improved Dispersion Recess 3mm aluminum face plate giving a semi-horn profile with much improved off-axis response, underhung Neodymium magnet motor, akuminum rear chamber, ferrofluid cooling and high power handling. Priced individually, supplied as matched pair.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Morel Driver Series||Morel Supreme|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||220W|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||680|
|Sensitivity (2.83V/1m)||91.5 dB|
|Nominal Rdc||5.20 ohms|
