Product Description
Details

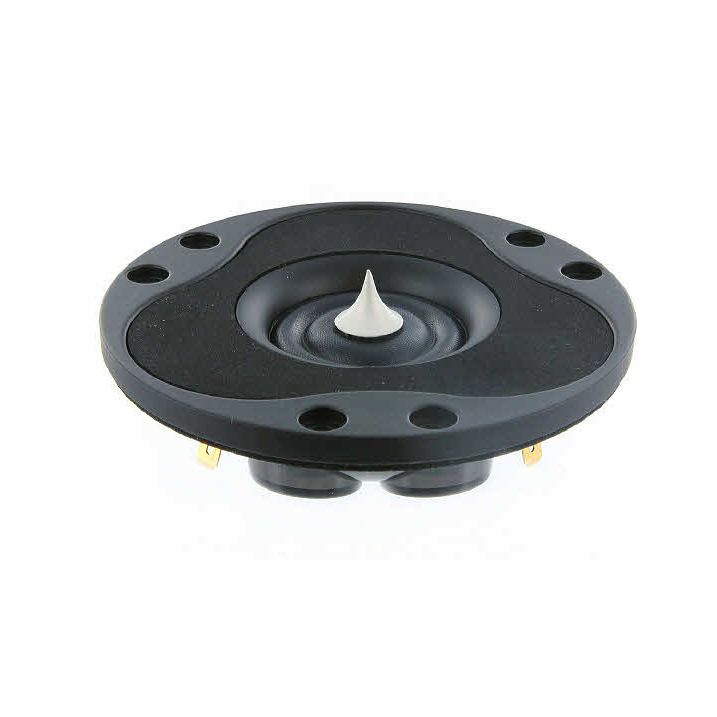

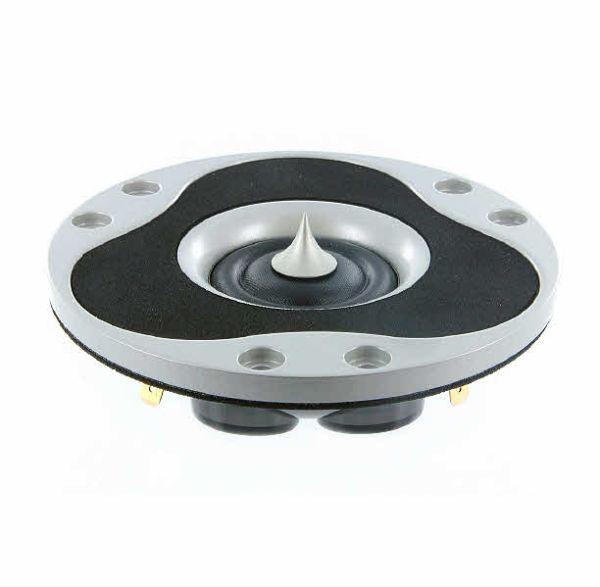

Scanspeak R3004/662000 Illuminator Tweeter, a no-compromise member of the superb Illuminator Range. Stunning design with superb vocal rendition and excellent imaging. 6 mounting holes. Black die-cast rubber painted aluminum face plate, Diffraction Damping Rubber Front, 1" Ring Dome Diaphragm, large roll surround, 26mm vc, all for wide dispersion. Low Fs, rear chamber design that eliminates reflections and resonances.
This tweeter features the Air-Circ “SD-2" Neodymium 6 magnet symmetric drive motor system. Excellent wide dispersion from the large roll surround. Fully comparable both in sound output and quality to the Revelator ranges.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Illuminator |
|---|---|
| Nominal Impedance | 4 ohms |
| Nominal Power RMS | 150W |
| Vas ( l) | 0.01 l |
| Nominal Free Air Resonance Fs | 520 Hz |
| Sensitivity (2.83V/1m) | 90.4 dB |
| Nominal Rdc | 3.9 ohm |
| Qes | 0.56 |
| Qms | 3.27 |
| Qts | 0.48 |
