Product Description
Details

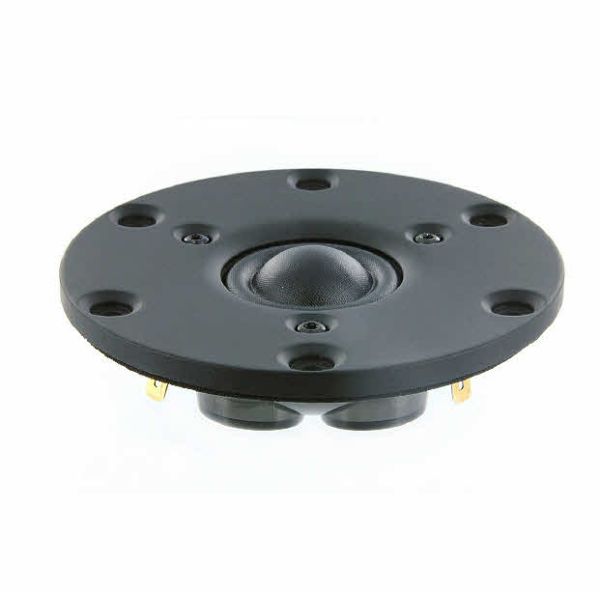

Scanspeak D3004/664000 Illuminator Tweeter. The D3004/664000 is "top of the range" with its pure beryllium diaphragm, large roll surround, and AirCirc motor system, it provide a excellent and unsurpassed sound reproduction with a flat frequency response to above 40KHz, outstanding off-axis response, low distortion and dynamic precision.
6 mounting holes. Black die-cast rubber painted aluminum face plate, 1" Beryllium dome, large roll surround, 26mm vc, all for wide dispersion. Low Fs, rear chamber design that eliminates reflections and resonances.
This tweeter features the Air-Circ “SD-2" Neodymium 6 magnet symmetric drive motor system. Excellent wide dispersion from the large roll surround. Outstanding sound output and quality.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Illuminator |
|---|---|
| Nominal Impedance | 4 ohms |
| Nominal Power RMS | 150W |
| Vas ( l) | 0.02 l |
| Nominal Free Air Resonance Fs | 500 Hz |
| Sensitivity (2.83V/1m) | 91.5 dB |
| Nominal Rdc | 3.6 ohm |
| Qes | 0.62 |
| Qms | 3.79 |
| Qts | 0.54 |
