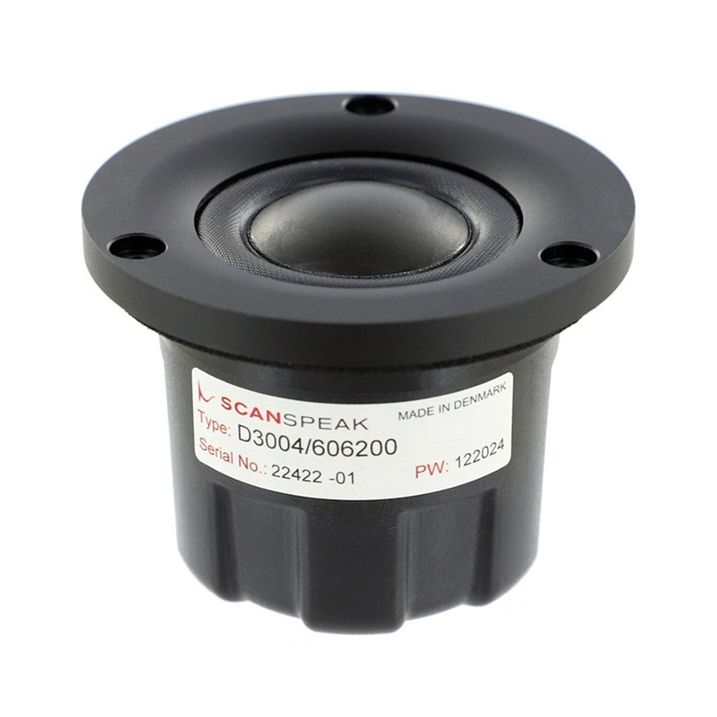

Scanspeak Illuminator D3004/606200 Tweeter - 26mm TPCD Dome
Scanspeak D3004/606200 Illuminator Tweeter. Fabulous ultra-smooth response NEW 26mm TPCD Thin Ply Carbon Diaphragm dome. Operating response range 2500-40,000 Hz. Anodised aluminium face plate. Low 430Hz Fs, Neo SD2 system. Rear chamber. Gold plated terminals.
Supplied in boxed factory pairs (QTY 2), priced per unit.
A product datasheet can be downloaded from the Product Description page.
Scanspeak D3004/602200 TPCD Illuminator Tweeter. Superb smooth on-axis & off-axis response from all new wide-surround 26mm TPCD Thin PLy Carbon Diaphragm dome. 2.5-40KHz operating response. Die-cast aluminium face plate. Low 430Hz Fs, Neo SD2 system. Excellent for smaller speaker systems and car audio applications. 3 mounting holes. Black anodised aluminum face plate. Non-resonant rear chamber. Gold plated terminals.
This tweeter features the “SD-2" Neodymium large magnet symmetric drive motor system. This outstanding compact tweeter is fully comparable both in sound output and quality to the larger members of the Illuminator or Revelator ranges.
Delivery is normally 7-10 working days if not in stock. Supplied in boxed pairs (QTY 2) only. Priced per unit.
A Product Datasheet is available below.
| Driver Fs | 440 Hz |
|---|---|
| Driver Impedance | 4 ohms |
| Driver Power | 130W |
| Driver Qes | 0.5 |
| Driver Qms | 2.2 |
| Driver Qts | 0.42 |
| Driver Rdc | 3.0 ohm |
| Scanspeak Driver Range | Scanspeak Illuminator |
| Driver Sens SPL | 90.5 dB |
| Driver Vas | 0.03 l |
