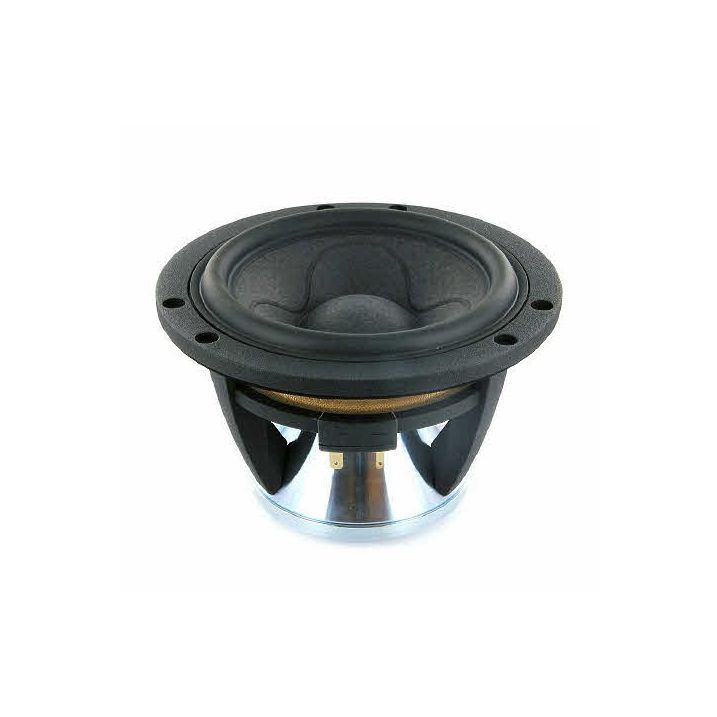

Scanspeak 15WU/8741T00 Mid Woofer - Illuminator Range 8 Ohm version. Illuminator midwoofers have a very distinctive design approach, featuring compact under-hung motor systems with large neodymium ring magnets powering the Copper capped Scanspeak SD-3 Symmetrical Drive.
The Illuminator motor in this unit has exceptional long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the open cast aluminum chassis design the driver is virtually free from compression.
The overall effect from the unique paper sandwich cone and one-piece dust cap is simply outstanding results of the highest quality.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Illuminator|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||150W|
|Vas ( l)||19.90 l|
|Nominal Free Air Resonance Fs||35 Hz|
|Sensitivity (2.83V/1m)||83.4 dB|
|Nominal Rdc||5.9 ohm|
