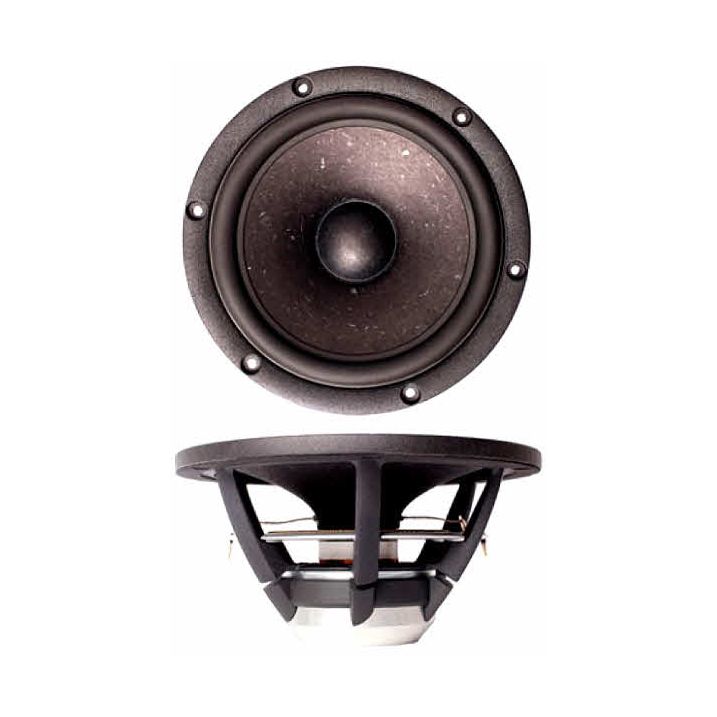

SB Acoustics Satori MW16P-8 Midwoofer is a State of The Art Neodymium magnet 6.5" 8ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency low damping optimum response rubber surround, BiMax spider, and a glassfibre former with copper sleeve pole piece.
Fitted with a 1.5" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 29Hz, and a fabulous level wide response curve.level midrange response, a very flexible unit. For an 4 ohm version, see MW16P-4
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Nominal Power RMS||60W|
|Vas ( l)||48.0 l|
|Nominal Free Air Resonance Fs||29 Hz|
|Sensitivity (2.83V/1m)||87.50 dB|
|Nominal Rdc||6.200 ohm|
