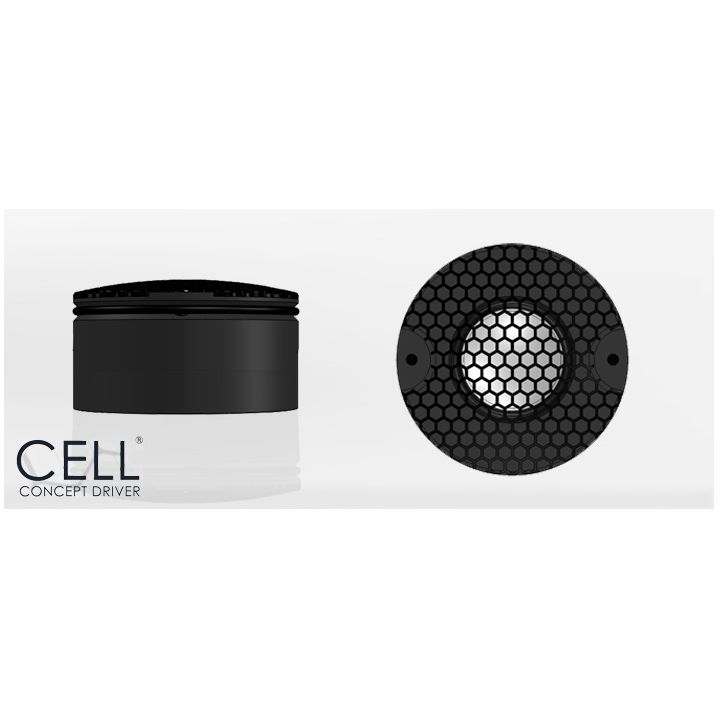

Accuton C25-6-158 Tweeter is a 1 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.
A unique FEA optimized underhung motor design with vented aluminium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion around 0.07% @ 2.83V and 0.5% max. @ 110dB. The new designed soft fabric surround centers the moving parts with improved linearity. We recommend an application above 2000 Hz.
Delivery is normally 10-14 working days if not in stock. Supplied in pairs (2 units) only. Free UK Delivery.
A Product Datasheet, a Dimensions Datasheet and 3D Picture links (n.b large file) are available below.
|Accuton Driver Series||Cell Concept Tweeter|
|Nominal Impedance||6 ohm|
|Nominal Power RMS||100 W|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||810 Hz|
|Nominal Rdc||5.80 ohm|
