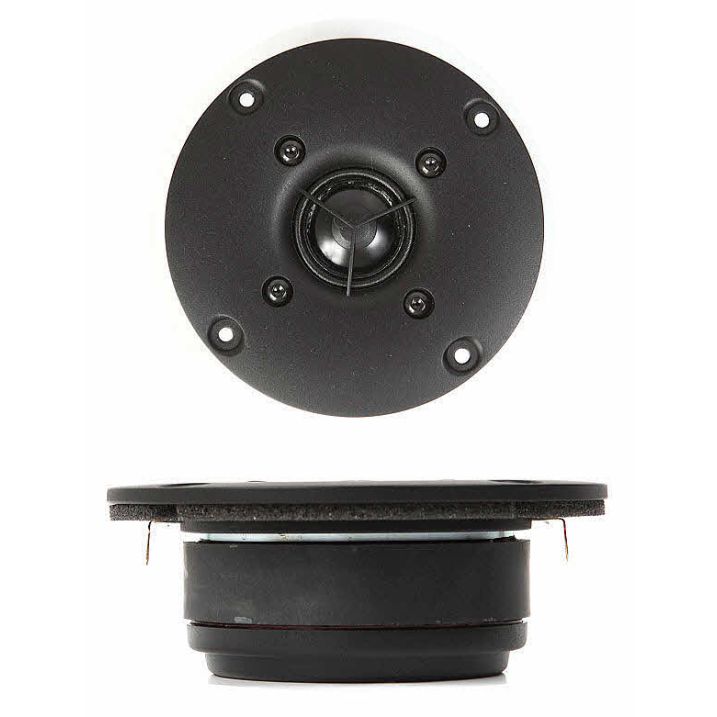

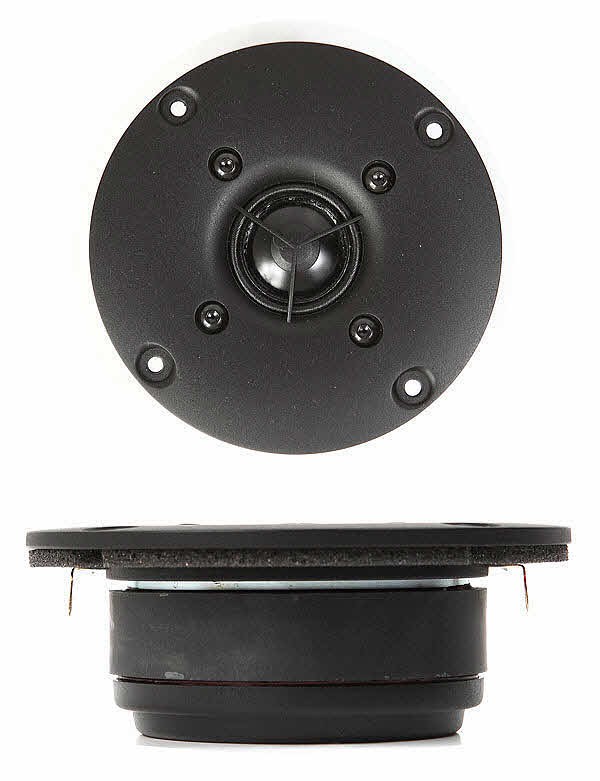

SB Acoustics SB26ADC-C000-4 Tweeter
Double click on above image to view full picture
More Views
Additional Information
| Nominal Impedance | 4 ohm |
|---|---|
| Nominal Power RMS | 120W |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 680 Hz |
| Sensitivity (2.83V/1m) | 90 dB |
| Nominal Rdc | 3.20 ohm |
| Qes | 2.00 |
| Qms | 2.90 |
| Qts | 1.20 |
Details
SB Acoustics SB26ADC-C000-4 tweeter is another SB Acoustics tweeter well known for a superb off-axis response and excellent extended highly linear response response.
It has an aluminum dome with diffuser, 1” voice coil, Copper Cap pole piece, and a 100mm OD face plate. The rear chamber is specially designed to give a low Fs (680 Hz) and reduce internal back reflections.
Superb value.
Priced individually, supplied in pairs. FREE UK DELIVERY
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
