AUDAX TW025A0 c/w 12 x 9 cm FACEPLATE - direct replacement for HD 12X9D25

Availability: In stock

Excl. Vat: £31.25 Incl. Vat: £37.50

Quick Overview

Audax TW025AO with classic opposite terminals and Audax made12 x 9 rectangular faceplate, a direct replacement for the classic Audax HD12x9D25 and most OEM 12 x 9 tweeters.

Be the first to review this product

Audax HD 12x9D25 replacement tweeter

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

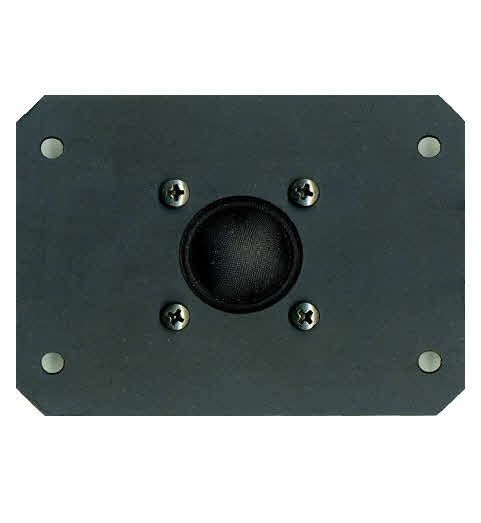

  • Audax HD 12x9D25 replacement tweeter
  • Audax HD 12x9D25 replacement tweeter rear

Additional Information

Nominal Impedance 8 ohm
Nominal Power RMS 55W
Vas ( l) -
Nominal Free Air Resonance Fs 1090 Hz
Sensitivity (2.83V/1m) 90 dB
Nominal Rdc 5.8
Qes -
Qms -
Qts -


Audax TW025AO complete with classic opposite terminals and 12 x 9 rectangular faceplate. Specially made for Falcon.

This direct replacement combines the high-quality 8 ohm 25 mm voice coil TW025A0 tweeter with a precision manufactured matched rectangular faceplate. It is a direct replacement for the classic Audax HD12x9D25 fitted by numerous OEM manufacturers but with improved performance. Will also directly replace most OEM rectangular faceplate tweeters with 12 x 9 faceplates.

We recommend replacing in pairs if possible for consistency. Uses existing cabinet cutouts.

The TW025A0 is designed with a new Catenary profile textile dome, which resembles an egg in profile and gives exception rigidity. Falcon Acoustics have precision manufactured and fitted a replaceable high quality 2mm aluminium black anodised front plate to the Audax tweeter, thus for the first time for many years offering a direct repacement for these classic tweeters. No Ferrofluid so no long term degradation issues.
