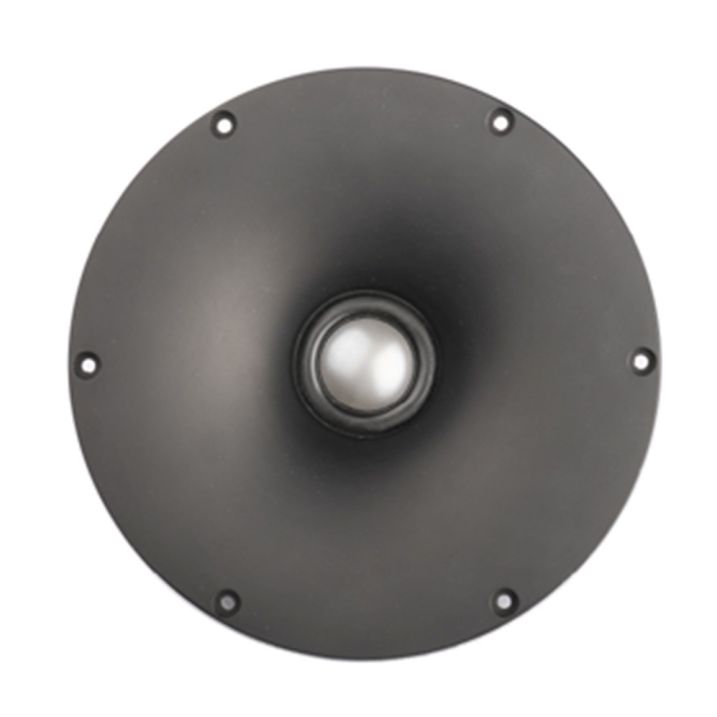

TW29BNWG-4 BLACK SATORI BERYLLIUM WAVE GUIDE Tweeter by SB ACOUSTICS FRONT Zoom

TW29BNWG-4 BLACK SATORI BERYLLIUM WAVE GUIDE Tweeter by SB ACOUSTICS

Be the first to review this product

SKU: 1382507

TW29BNWG-4 BLACK SATORI Tweeter by SB ACOUSTICS, BERYLLIUM dome.170.00mm diameter waveguide faceplate, long life silver lead wires. Low Resonance Frequency for extended range.


IN STOCK FOR IMMEDIATE DELIVERY

Availability: In stock

Excl. Vat: £263.45 Incl. Vat: £316.14
Product Description

    Details

    TW29BNWG-4 BLACK SATORI Tweeter by SB ACOUSTICS, BERYLLIUM dome. 170.00mm diameter waveguide faceplate, long life silver lead wires. Low Resonance Frequency for extended range.

    Featuring unique 170mm wave guide front plate with beryllium dome. Adapter ring for bolt-less mounting to driver. Controlled directivity. High saturation neodymium motor system with T-shaped pole piece for lower distortion, two part black aluminum faceplate with integrated mechanical decoupling and dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift.

    Designed with a non-reflective cast aluminum chamber with optimized damping for improved dynamics, and Shallow flow magnet structure for optimum coupling to rear chamber.

    A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).

    SB AcousticsTW29TXN-B SATORI Datasheet

Additional Information

    Additional Information

    Nominal Impedance 4 ohm
    Nominal Power RMS 80W
    Vas ( l) -
    Nominal Free Air Resonance Fs 700 Hz
    Sensitivity (2.83V/1m) 97 dB
    Nominal Rdc 3.0 ohms
    Qes 0.60
    Qms 2.10
    Qts 0.46
