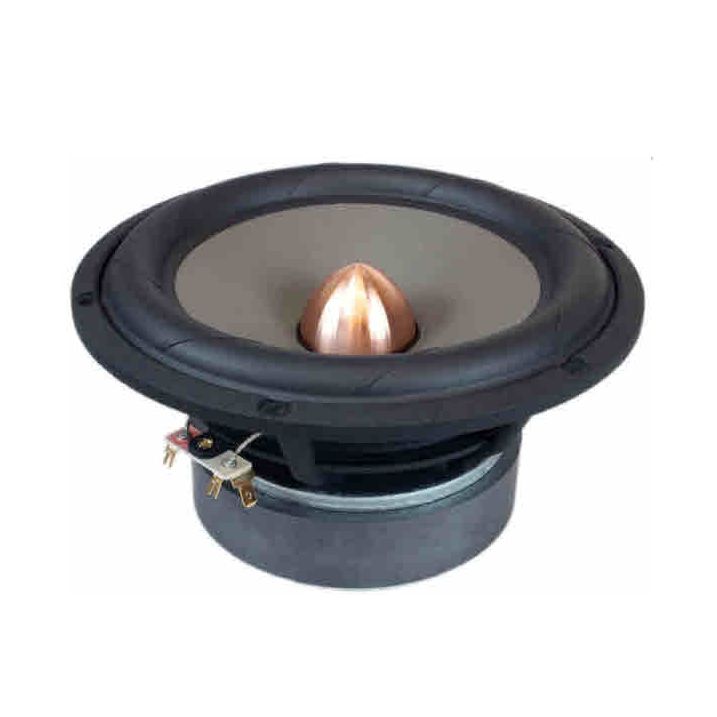

SEAS W19NX001 E0076-08 Graphene Woofer Zoom

SEAS W19NX001 E0076-08 Graphene Woofer Excel Series (Boxed Pair)

Be the first to review this product

SKU: SEAS W19NX001 E0076-08

SEAS W19NX001 E0076-08 Graphene Woofer. £725.00 pr. excl. VAT. cast Magnesium cone with a unique Graphene coating for unltra-low resonances, extra damping, giving exceptional smooth and detailed sound.


Price is for a Boxed Pair ( Quantity 1).

Availability: In stock

Excl. Vat: £725.00 Incl. Vat: £870.00
Product Description

    Details

    SEAS W18NX003 E0096-08 Woofer. Features a cast Magnesium cone with a unique Graphene coating for unltra-low resonances, extra damping, giving exceptional smooth and detailed sound.

    A 39mm titanium voice coil former with a long copper winding for excellent force transfer, transient sound reproduction and large linear excursion. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. This combination results in very low mechanical damping for better clarity and brings out the micro details in the music.

    An FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high power handling and low distortion.

    The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.



    Sold/Priced in Boxed Pairs.

    A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).

    Seas W19NX001 E0076-08 Datasheet

Additional Information

    Additional Information

    Seas Driver Range Seas Excel
    Nominal Impedance 8 ohm
    Nominal Power RMS 200W
    Vas ( l) 24 l
    Nominal Free Air Resonance Fs 34 Hz
    Sensitivity (2.83V/1m) 85.60 dB
    Nominal Rdc 6.20 ohms
    Qes 0.45
    Qms 5.30
    Qts 0.41
