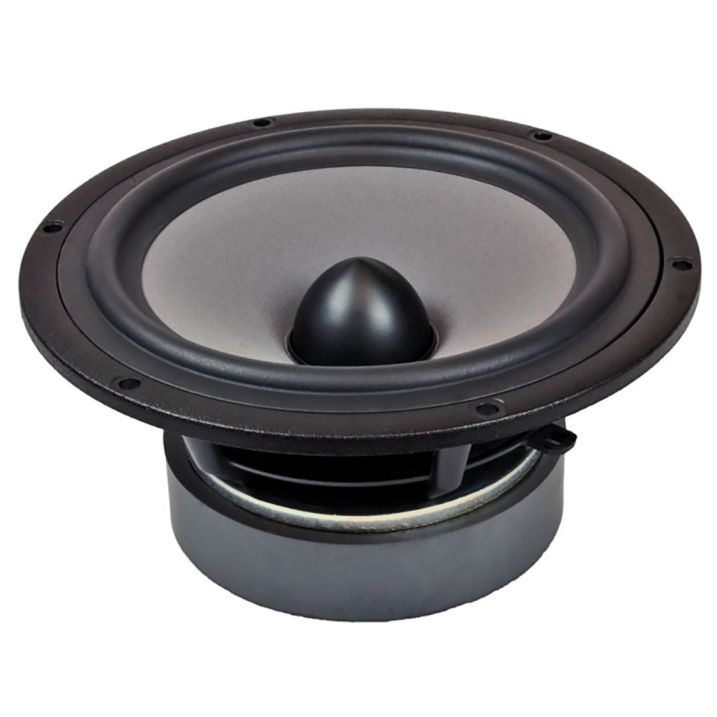

SEAS W18NX003 E0096-08 Woofer. Features a paper cone with a unique Nextel top coating plus a back coating for extra damping, giving exceptional smooth and detailed paper cone sound.
An FEA optimised magnet system with precisely fitted copper parts gives state-of-the-art linearity and low distortion.
Designed with 39mm Titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. A unique adaptive rubber surround reduces radial resonances and prevents surround break up at large excursions. Low mechanical and electromagnetic damping ensure high quality reproduction of even the finest micro details in music.
The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
Sold/Priced in Boxed Pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Excel |
|---|---|
| Nominal Impedance | 8 ohm |
| Nominal Power RMS | 200W |
| Vas ( l) | 31 l |
| Nominal Free Air Resonance Fs | 35 Hz |
| Sensitivity (2.83V/1m) | 87.60 dB |
| Nominal Rdc | 6.30 ohms |
| Qes | 0.38 |
| Qms | 3.11 |
| Qts | 0.34 |
