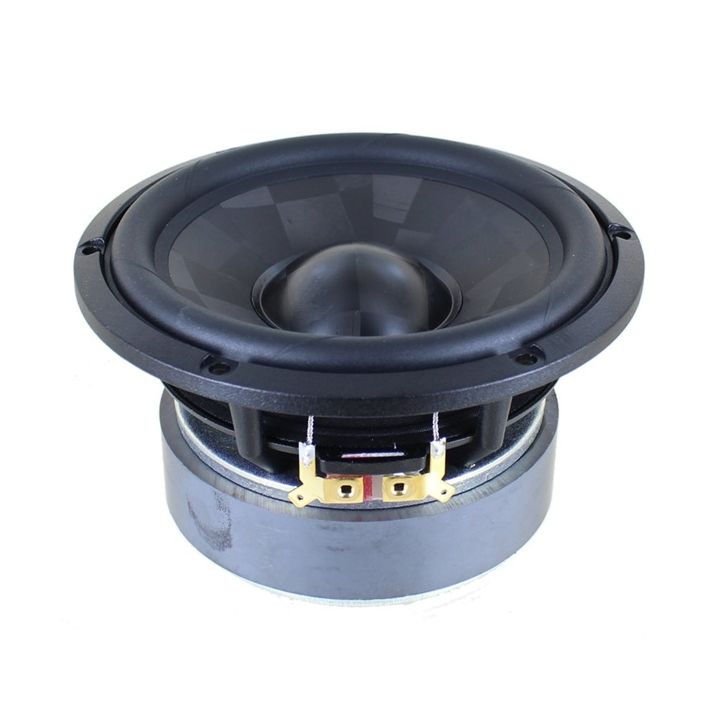

SEAS W16NX005 TPCD E0115-08
SEAS W16NX005 E0115-08 is a High Power 2nd generation Metamodal TPCD 5.5" cone woofer , specifically engineered to have low weight, high stiffness and controlled damping. Matched to an optimised suspension to give a smooth, extended frequency response. Injection moulded metal chassis. Intended for bass reflex and closed box designs.
Also featuring a 39mm Titanium voice coil former with long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion.
The SEAS Metamodal TPCD cone is the second generation of the TPCD material which is engineered to have low weight, high stiffness and controlled damping. This is matched to an optimised suspension to give a smooth, extended frequency response.
39mm Titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion.
An FEA optimised magnet system with precisely fitted copper parts for superb linearity, high power handling and low distortion.
The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
This combination results in improved clarity and finely detailed sound reproduction, for a more lifelike and realistic listening experience.
A Product Datasheet is available below.
| Driver Fs | 40 Hz |
|---|---|
| Driver Impedance | 8 ohms |
| Driver Power | 180W. 300W peak |
| Driver Qes | 0.34 |
| Driver Qms | 4.37 |
| Driver Qts | 0.32 |
| Driver Rdc | 6.40 ohms |
| Driver Sens SPL | 87.3 dB |
| Driver Vas | 18l |
| SEAS Driver Series | Seas Excel |
