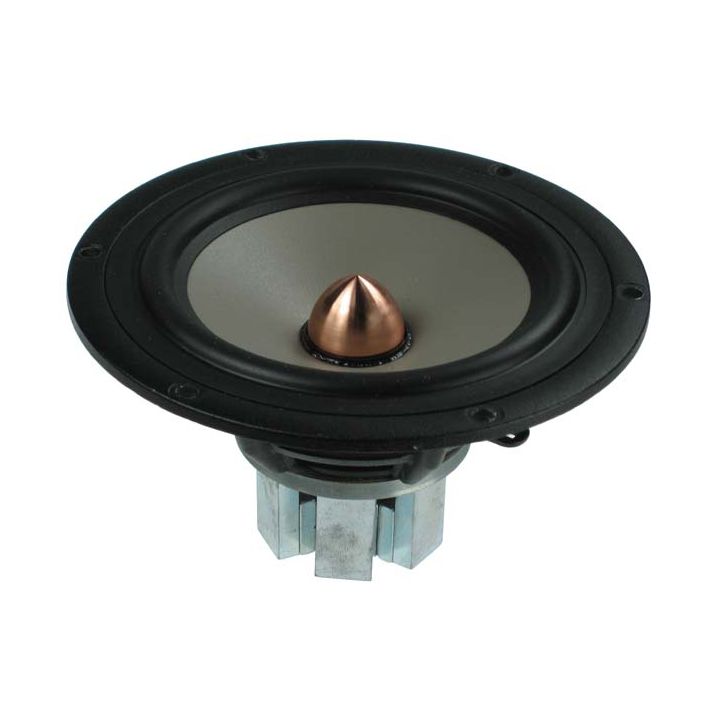

The SEAS W15CH001 E0037-08 is a 15cm (6’’) State of the Art woofer/midrange unit. The precision cast and surface treated magnesium cone coupled to a natural rubber surround shows no sign of midrange (edge) resonances.
The SEAS Patented Hexadym magnet system is an acoustically transparent design to avoid cavity resonances and air flow noise. The magnet system based on 6 small, radially magnetized Neodymium blocks is compact to reduce the reflexion of sound energy to a minimum.
A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non-linear and modulation distortion and increase overload margin. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Excel |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 70 |
| Vas ( l) | 14 |
| Nominal Free Air Resonance Fs | 38 Hz |
| Sensitivity (2.83V/1m) | 85.00 dB |
| Nominal Rdc | 5.5 ohms |
| Qes | 0.5 |
| Qms | 2.58 |
| Qts | 0.42 |
