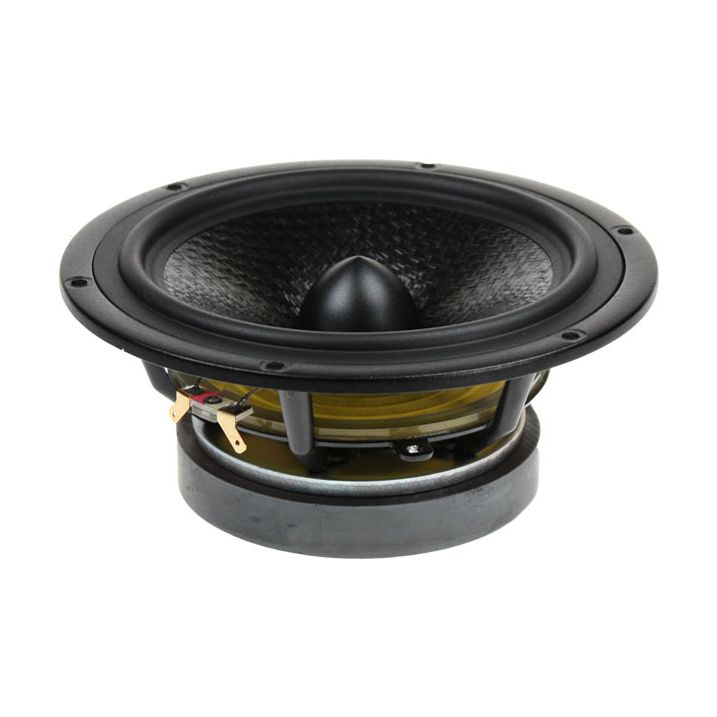

SEAS H1571-08 U18RNX/P is a 6.5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs. A new Curv cone, made from woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. A bumped back plate in the magnet system, together with the very long and light weight copper clad aluminium voice coil, allows extreme coil excursion with low distortion. The heavy copper ring below the T-shaped pole piece also reduces non linear and modulation distortion.
The bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Seas Driver Range | Seas Prestige |
---|---|
Nominal Impedance | 8 ohms |
Nominal Power RMS | 80 |
Vas ( l) | 22 |
Nominal Free Air Resonance Fs | 43 Hz |
Sensitivity (2.83V/1m) | 88.0 dB |
Nominal Rdc | 5.90 ohms |
Qes | 0.45 |
Qms | 2.05 |
Qts | 0.37 |
