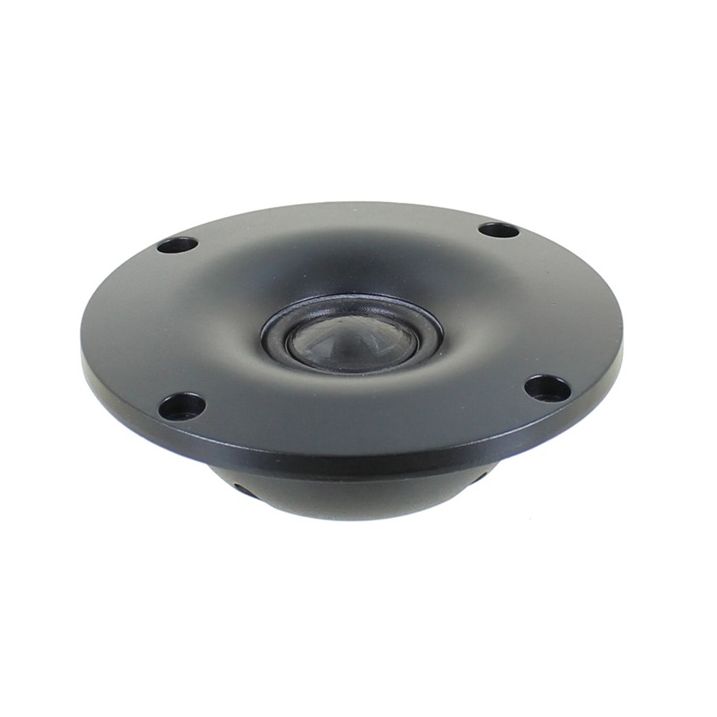

SEAS T29X001 E0110-04 TPCD TWEETER

Ultra high performance tweeter featuring a Composite Sound Metamodal^TM diaphragm (Second Generation TPCD) and the patented HEXADYM magnet system.

The TPCD dome is manufactured to SEAS specifications. By using this innovative material, the thickness, stiffness, and loss factor can be optimized at any given point, enabling an unprecedented control over the modal behaviour of the radiating surface.

The unique HEXADYM magnet system exhibits 6 radially magnetized NdFeB magnet blocks which allow for an efficient ventilation and minimization of any potential cavity resonances behind the moving parts. A copper sleeve is precisely mounted onto the pole-piece to reduce nonlinear and modulation distortion.

A high temperature voice coil is wound on a titanium former, delivering an excellent force transfer and transient motion. The surround is made of a homogeneous and lightweight SONOMEX fabric material with high consistency and climatic stability, where the shape of the roll has been meticulously FEA-optimized.

The aluminium front plate has a carefully optimized small horn loading for an improved directivity control while bringing a sophisticated appearance.

The result is an extremely clean and vibrant sound that takes the listener to the next level. A superb choice for any loudspeaker system.

A Product Datasheet is available below.
