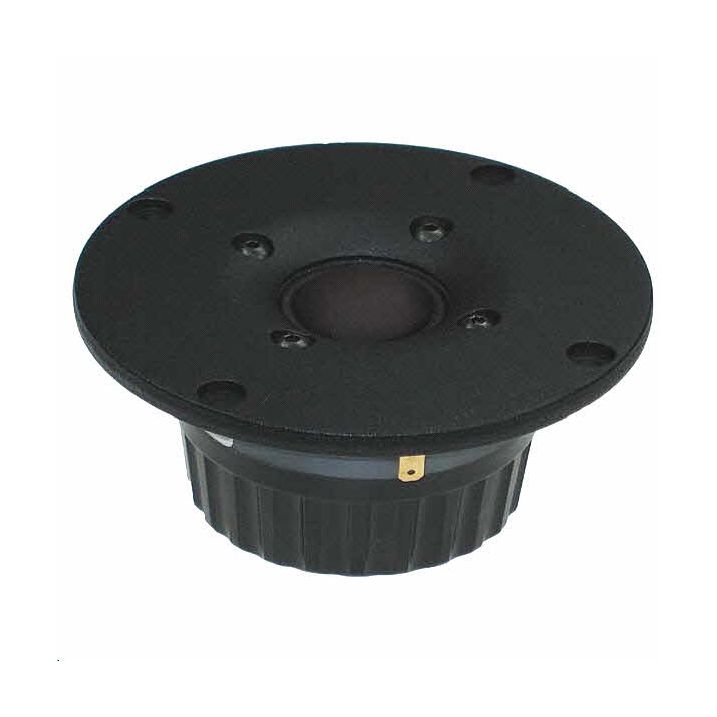

Seas T25CF001 E0006-06 Tweeter - Excel Series Zoom

Seas T25CF001 E0006-06 Tweeter - Excel Series

Be the first to review this product

SKU: Seas T25CF001 E0006

Seas T25CF001 E0006-06 Tweeter. £78.45 excl. VAT. Excel Series 25mm fabric dome tweeter, excellent performance and consistency. 6 mm metal front plate. Optimally shaped dome and a wide SONOMEX surround.


A product datasheet can be downloaded from the Product Description page.

Availability: In stock

Excl. Vat: £78.45 Incl. Vat: £94.14
Product Description

    Details

    Seas T25CF001 E0006-06 Tweeter is a 25mm fabric dome tweeter of the justifiably famous Seas Excel Series. Featuring moderate high efficiency, an optimally shaped dome and a wide SONOMEX surround this tweeter has excellent performance and consistency. A solid 6 mm metal front plate has a slight loading characteristic which ensures linear frequency response and a stiff and stable connection to the cabinet.

    Ferrofluid provides excellent cooling while maintaining a low resonance frequency.

    The substantial injection-moulded rear chamber with complex internal shaping and reinforcing ribs eliminates unwanted chamber resonances and reflections.

    A double magnet system increases sensitivity and provides better control of the voice coil. This also reduces stray magnetic fields making the T25CF001 an ideal choice in high end A/V applications.

    A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).

    SeasT25CF001 E0006 Datasheet

Additional Information

    Additional Information

    Seas Driver Range Seas Excel
    Nominal Impedance 6 ohms
    Nominal Power RMS 90
    Vas ( l) -
    Nominal Free Air Resonance Fs 700 Hz
    Sensitivity (2.83V/1m) 91.0 dB
    Nominal Rdc 4.60 ohms
    Qes -
    Qms -
    Qts -
