Product Description
Details

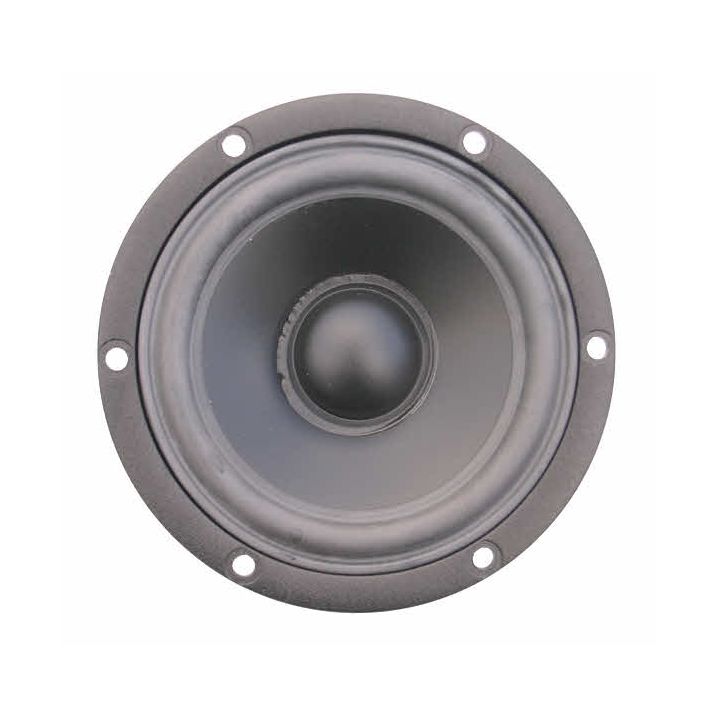

Seas MP12RC H1422-08 Midrange. Cast metal chassis with 6 point mounting for exceptional stability. The careful matching of a filled polypropylene cone, soft PVC surround and a soft PVC dust cap gives a very smooth frequency response with excellent dynamic behaviour. No additional coating of the cone has been necessary, and this results in an improved consistency between units. Mechanically matching natural rubber surround, giving a very smooth midrange response.
The 26mm high temperature voice coil is wound on an aluminium voice coil former to ensure a high power handling capacity.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown). Please note that this is for for the MP12VC ( similar datasheet plastic chassis version).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 90 |
| Vas ( l) | 2.9 |
| Nominal Free Air Resonance Fs | 90 Hz |
| Sensitivity (2.83V/1m) | 89.5 dB |
| Nominal Rdc | 6.10 ohms |
| Qes | 0.65 |
| Qms | 1.34 |
| Qts | 0.44 |
