Product Description
Details

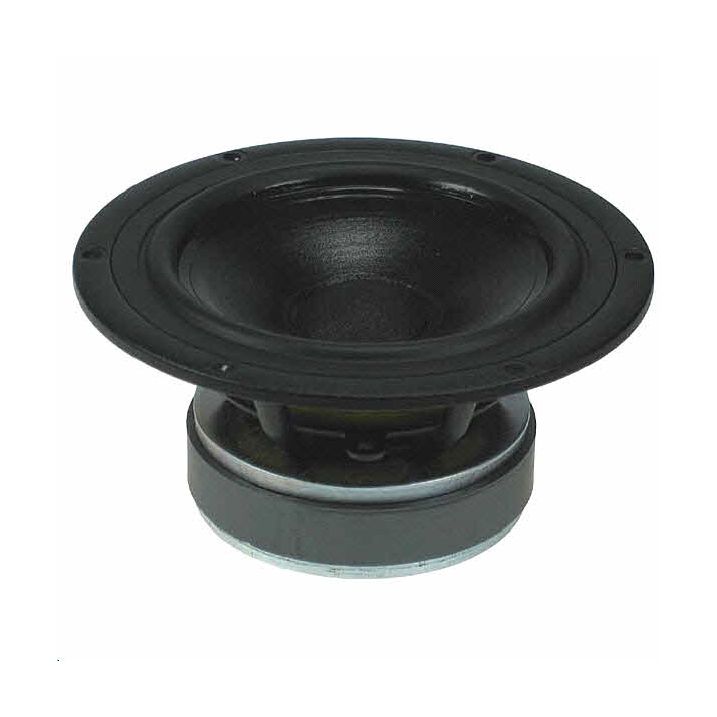

Seas MCA15RCY H1262-08 Midrange is a classic Seas Midrange widely used by both OEM and speaker builders alike, with a manually coated 5" paper cone giving a very smooth midrange response. High Efficiency, Low Q.
An extremely stiff and stable injection moulded metal basket keeps critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Seas Driver Range | Seas Prestige |
---|---|
Nominal Impedance | 8 ohms |
Nominal Power RMS | 100 |
Vas ( l) | 12 |
Nominal Free Air Resonance Fs | 51 Hz |
Sensitivity (2.83V/1m) | 89.5 dB |
Nominal Rdc | 5.80 ohms |
Qes | 0.3 |
Qms | 1.57 |
Qts | 0.25 |
Product Reviews
-
Great value for money by Ben
I used these to make some surround speakers for my AV receiver. It is my first speaker build and I am certainly no expert. But they seemed to have turned out pretty well. Good solid and tidy drivers. No distortion at all at any volume and even rock music is both clear and smooth. You can ask my neighbours neighbours. (Posted on 11/04/2017)
