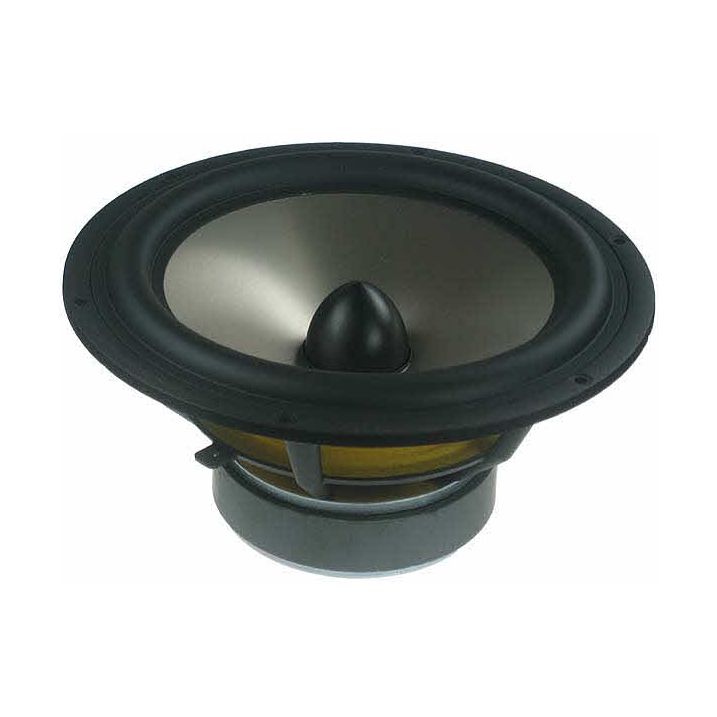

SEAS L26RFX/P H1209-08 is an 10" woofer, with superb bass extension response. An extremely stiff aluminum cone gives tremendous bass precision and extension. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. The extremely long 2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression.
The phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.
The large magnet system provides medium/high efficiency and low Q. An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Prestige|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||125|
|Vas ( l)||171|
|Nominal Free Air Resonance Fs||20 Hz|
|Sensitivity (2.83V/1m)||88.0 dB|
|Nominal Rdc||6.30 ohms|
