Product Description
Details

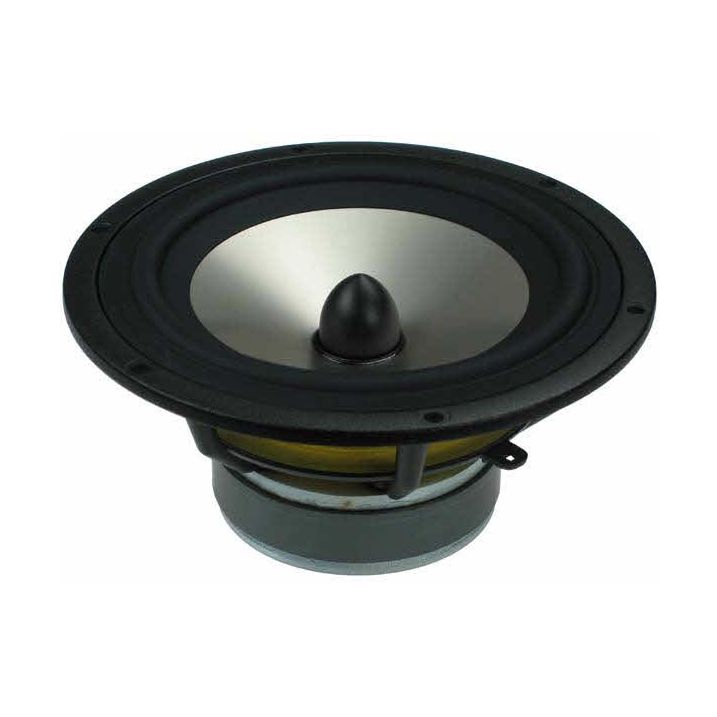

Seas L18RCY/P H1085-08 is a 6.5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs.
Stiff, yet light aluminium cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.
High temperature voice coil wound on an aluminium voice coil former gives a high power handling capacity. Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity. Large magnet system provides high efficiency and low Q.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 80/250 |
| Vas ( l) | 38 |
| Nominal Free Air Resonance Fs | 33 Hz |
| Sensitivity (2.83V/1m) | 88.0 dB |
| Nominal Rdc | 5.60 ohms |
| Qes | 0.37 |
| Qms | 2.01 |
| Qts | 0.31 |
