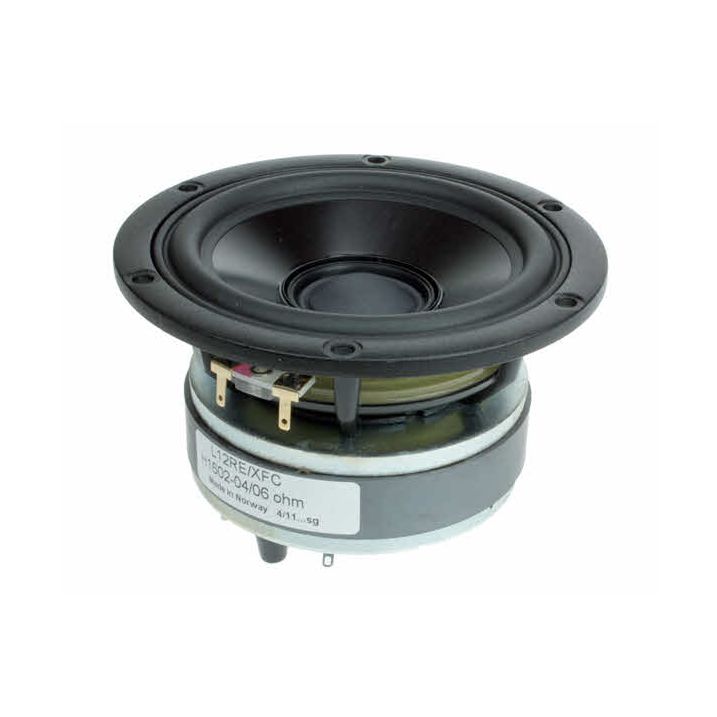

Seas L12RE/XFC H1602-04/06 is a coaxial loudspeaker providing high quality sound in a very compact format. The cone of the woofer acts as a moderate horn loading for the tweeter, and the chassis of the dome unit forms the horn throat.
The stiff light aluminium cone acts as a piston throughout the recommended frequency range. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency, and integrates with the cone driver to a point source. Voice coil windings immersed in ferrofluid increase short term power handling capacity and reduce compression at high power levels.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Prestige|
|Nominal Impedance||4 + 6 ohms|
|Nominal Power RMS||80 (90W Tw.)|
|Vas ( l)||3|
|Nominal Free Air Resonance Fs||55/1200 Hz|
|Sensitivity (2.83V/1m)||86/88.5 dB|
|Nominal Rdc||3.10/4.80 ohms|
