Product Description
Details

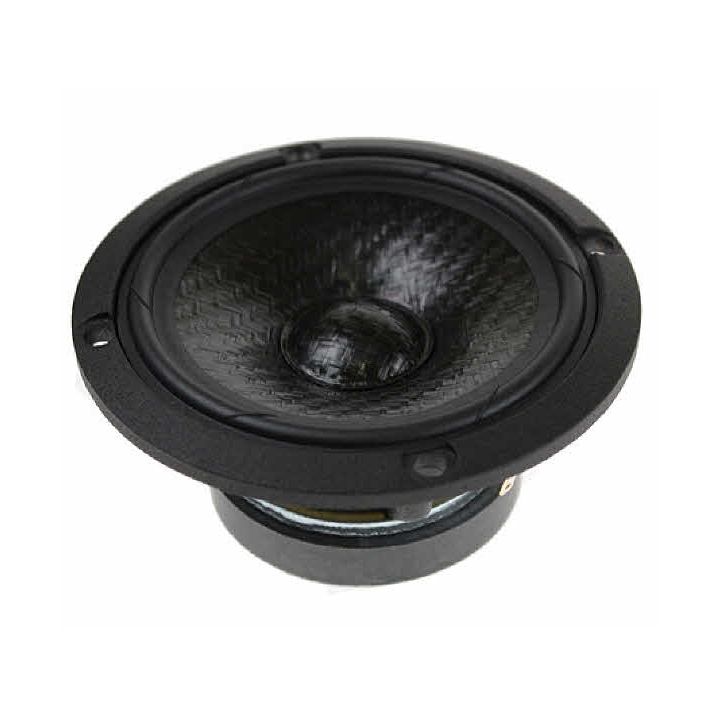

Seas MU10RB-SL H1658-04 is an 4” midrange range driver giving extraordinary performance and sound clarity. The new Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.
A high loss natural rubber surround makes this driver perform its best as a midrange.
The large, open weave fabric spider reflects very little acoustic energy to the cone, and offers excellent stiffness linearity. The stiff and stable injection moulded aluminum chassis keeps the critical components in perfect alignment. The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance.
Small size combined with an excellent performance makes this driver the perfect selection for any application where limited space is a critical parameter.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 4 ohms |
| Nominal Power RMS | 40 |
| Vas ( l) | 1.1 |
| Nominal Free Air Resonance Fs | 100 Hz |
| Sensitivity (2.83V/1m) | 84.70 dB |
| Nominal Rdc | 3.3 ohms |
| Qes | 1.15 |
| Qms | 1.63 |
| Qts | 0.67 |
