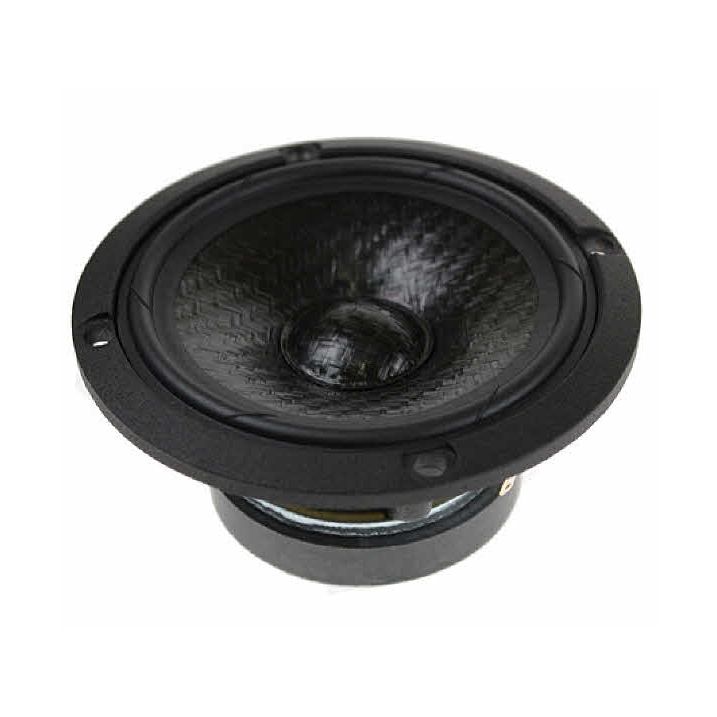

Seas H1600-08 FU10RB is an 4” full range driver offering an extraordinary extended frequency performance and sound clarity.
The new SEAS Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. The large, open weave fabric spider reflects very little acoustic energy to the cone, and offers excellent stiffness linearity.
A stiff and stable injection moulded aluminum chassis keeps the critical components in perfect alignment. The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance.
Small size combined with an excellent performance makes this driver the perfect choice for any application where limited space is a critical parameter.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 40 |
| Vas ( l) | 1 |
| Nominal Free Air Resonance Fs | 102 Hz |
| Sensitivity (2.83V/1m) | 82.10 dB |
| Nominal Rdc | 6.42 ohms |
| Qes | 3.25 |
| Qms | 1.36 |
| Qts | 0.96 |
