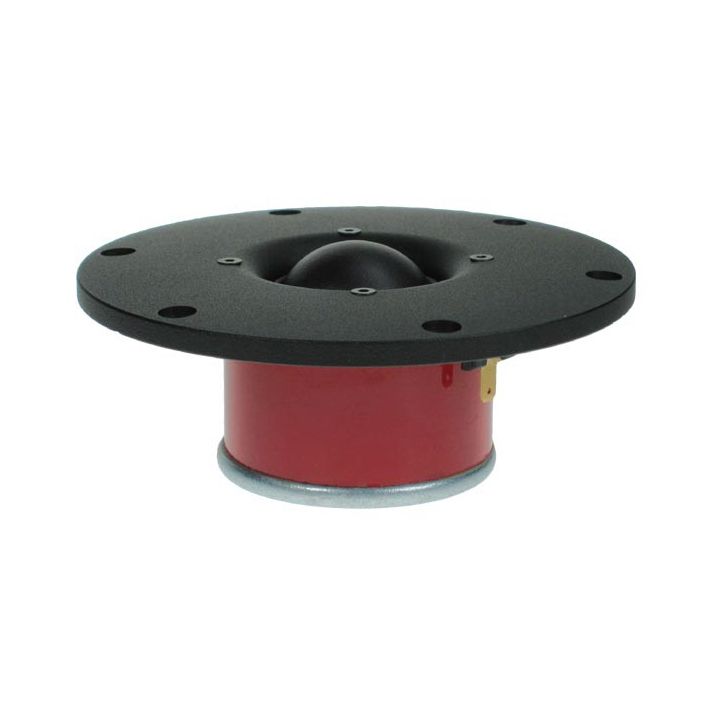

The SEAS Exotic X3-06 T35 is a classic 6 ohm dome midrange tweeter with high sensitivity and a smooth, extended frequency response.
A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency.
A high efficiency Alnico V ring magnet in a carefully designed system contributes to high sensitivity and low distortion. A large and well damped cavity in the pole ensures a low resonance frequency and smooth response.
A generously underhung 35mm voice coil wound from copper-clad aluminium wire further enhances the sensitivity. Flexible lead-out wires and venting holes in the aluminium coil former help reduce noise to a minimum.
A large diameter 7mm thick precision machined aluminium front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Exotic|
|Nominal Impedance||6 Ohms|
|Nominal Power RMS||100/250 W|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||600 Hz|
|Sensitivity (2.83V/1m)||94 dB|
|Nominal Rdc||4.6 Ohms|
