Product Description
Details

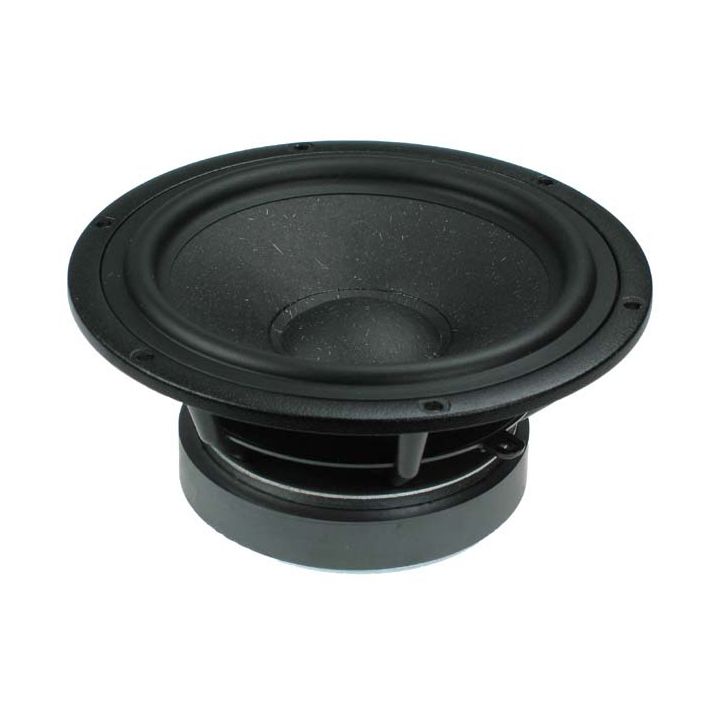

SEAS ER18RNX H1456-08 is a 6.5” High Fidelity woofer developed for use as a long throw woofer or woofer/midrange unit. Featuring an edge coated reed/paper pulp cone with a smooth, extended frequency response.
The bumped back plate in the magnet system, together with the very long and light weight copper clad aluminium voice coil allows extreme coil excursion with low
distortion. A heavy copper ring below the T-shaped pole piece reduces non linear and modulation distortion. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Seas Driver Range | Seas Prestige |
---|---|
Nominal Impedance | 8 ohms |
Nominal Power RMS | 80 |
Vas ( l) | 32 |
Nominal Free Air Resonance Fs | 37 Hz |
Sensitivity (2.83V/1m) | 88.5 dB |
Nominal Rdc | 5.90 ohms |
Qes | 0.39 |
Qms | 1.58 |
Qts | 0.32 |
