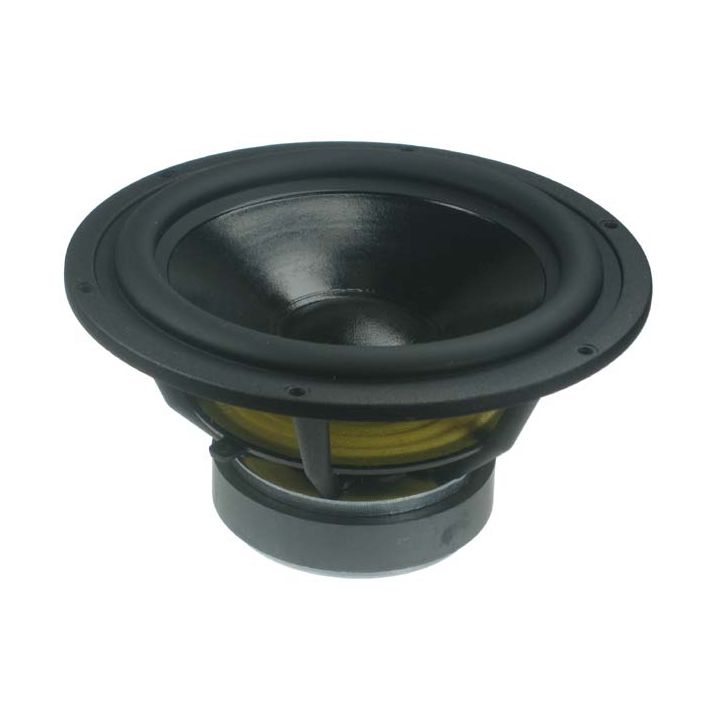

Seas CD22RN4X H1192-08 Woofer - Prestige Series
SEAS CD22RN4X H1192-08 is a classic 8" 4-layer voice coil woofer, with a double treated, hard paper cone designed to be very stiff without losing the damping capability, which together with a natural rubber surround produce a well behaved roll off characteristic and reduce potential resonance problems.
A product datasheet can be downloaded from the Product Description page.
SEAS CD22RN4X H1192-08 is a classic 8" 4-layer voice coil woofer, with a double treated, hard paper cone designed to be very stiff without losing the damping capability, which together with a natural rubber surround produce a well behaved roll off characteristic and reduce potential resonance problems.
The large magnet system with bumped back plate together with a long 4-layer voice coil gives long linear excursion. The magnet system has a T-shaped cross section of the pole piece for low modulation distortion.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonances.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
| Driver Fs | 29 Hz |
|---|---|
| Driver Impedance | 8 ohms |
| Driver Power | 80 |
| Driver Qes | 0.52 |
| Driver Qms | 2.04 |
| Driver Qts | 0.41 |
| Driver Rdc | 6.10 ohms |
| Driver Sens SPL | 89.5 dB |
| Driver Vas | 97 |
| SEAS Driver Series | Seas Prestige |
