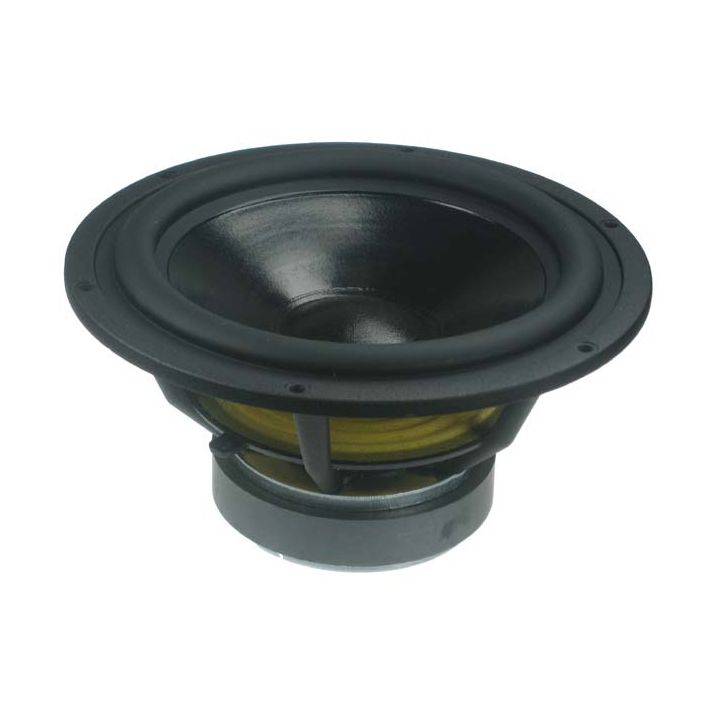

Seas CA22RNX H1288-08 Woofer - Prestige Series
Seas CA22RNX H1288-08 Popular Long Throw Woofer, classic coated 8" paper cone, HT coil, High X-Max bump back plate, a well behaved roll off characteristic and reduced resonance.
The long high temperature voice coil wound on an aluminium voice coil former gives excellent low distortion and high power handling capacity.
A product datasheet can be downloaded from the Product Description page.
SEAS CA22RNX H1288-08 is a classic 8" woofer, with a hand-coated paper cone and matching natural rubber surround for extended low frequency response, a well behaved roll off characteristic and reduced resonance. A long high temperature voice coil wound on an aluminium voice coil former gives excellent low distortion and high power handling capacity.
The extra large magnet system provides high efficiency and good transient response, making this driver perfect for high efficiency 2-way systems.
Bumped backplate and traditional large windows in the metal basket both above and below the spider reduce sound reflections, air flow noise and cavity resonances to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
| Driver Fs | 29 Hz |
|---|---|
| Driver Impedance | 8 ohms |
| Driver Power | 80 |
| Driver Qes | 0.52 |
| Driver Qms | 2.04 |
| Driver Qts | 0.41 |
| Driver Rdc | 6.10 ohms |
| Driver Sens SPL | 89.5 dB |
| Driver Vas | 97 |
| SEAS Driver Series | Seas Prestige |
