Product Description
Details

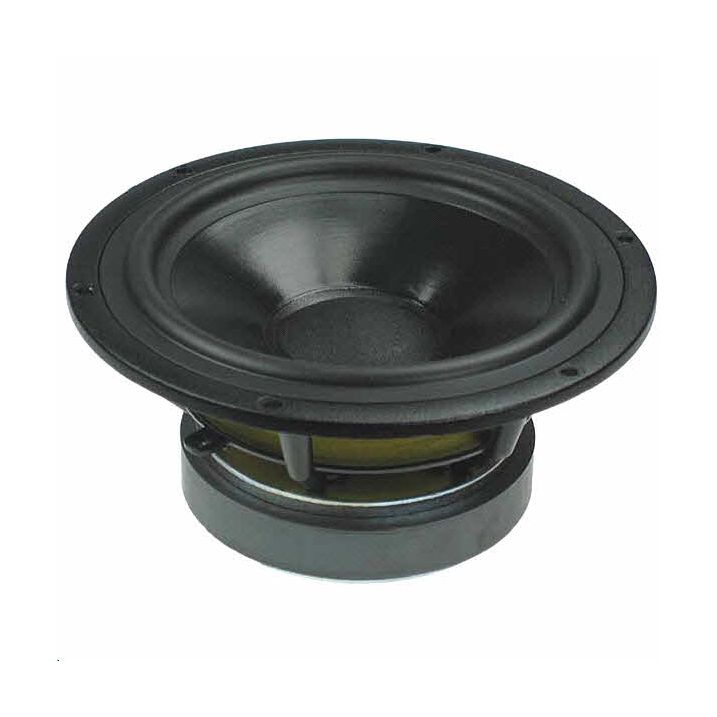

Seas CA18RLY H1217-08 Woofer is a widely used Seas Prestige Series Woofer extensively used by both OEM and speaker builders alike, with a coated 6.5" classic paper cone giving a very smooth extended response with a well controlled roll off.
The large magnet motor combined with a very long light weight 26mm copper clad aluminum wire voice coil allows very good excursion (Xmax 20mm p/p) , low distortion and excellent transient responses.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 80 |
| Vas ( l) | 32 |
| Nominal Free Air Resonance Fs | 42 Hz |
| Sensitivity (2.83V/1m) | 90.0 dB |
| Nominal Rdc | 5.80 ohms |
| Qes | 0.56 |
| Qms | 2.92 |
| Qts | 0.47 |
