Product Description
Details

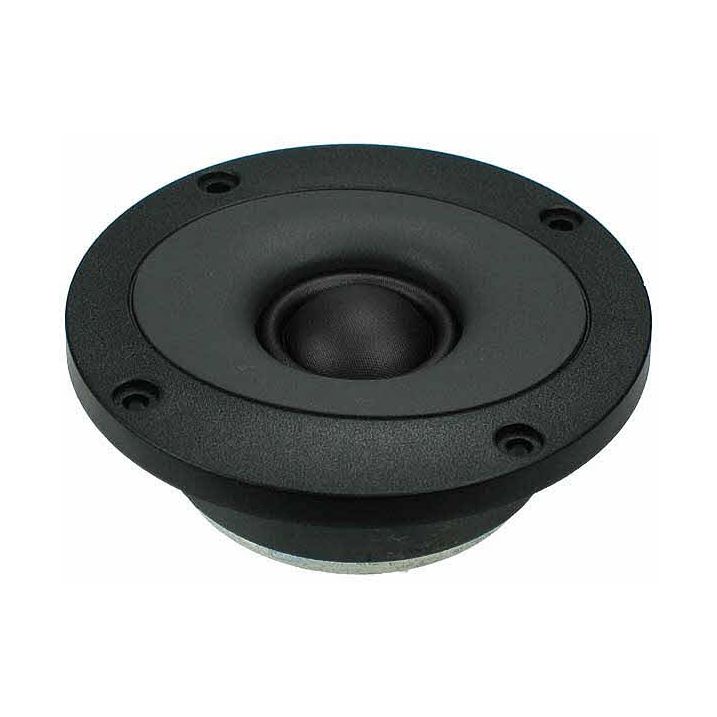

Seas 29TFF/W H1318-06 Tweeter is a favourite amongst speaker builders, featuring a High Definition precoated fabric dome with an integrated wide, precoated fabric surround. The precoated Sonomex fabric diaphragm allows very tight production tolerances and high consistency, while the wide Sonomex surround gives low resonance and excellent mechanical linearity.
The two part front plate forms a smooth, slightly elliptical wave guide made from elastomer, providing outstanding high frequency response and dispersion. Voice coil windings immersed in ferrofluid increase short term power handling capacity and reduce the compression at high power levels.
Flexible lead out wires allow this driver to be used with low crossover frequencies.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Seas Driver Range | Seas Prestige |
---|---|
Nominal Impedance | 6 ohms |
Nominal Power RMS | 200 |
Vas ( l) | - |
Nominal Free Air Resonance Fs | 950 Hz |
Sensitivity (2.83V/1m) | 92.0 dB |
Nominal Rdc | 4.70 ohms |
Qes | - |
Qms | - |
Qts | - |
