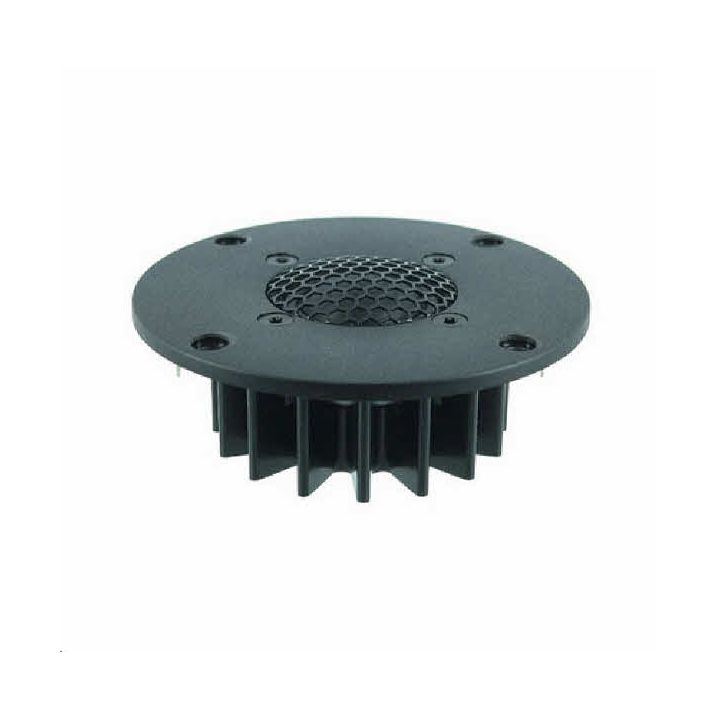

SEAS H1451-16 T27TDNC/GW is a High Definition precoated fabric dome tweeter. 27TDFNC/GW H1462 w/out Ferrofluid. SEAS Back catalogue unit.
Outstanding response extension, with a wide, soft polymer surround and a powerful neodymium magnet system with a rear chamber. A Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity. The diaphragm is protected by a highly perforated hexagrid. A Sonomax surround is used for low resonance and excellent mechanical linearity. Ferrofluid-free.
Flexible lead out wires allow this driver to be used with low crossover frequencies. Powerful magnet system based on a high grade neodymium ring magnet for exceptional sensitivity and control. A stiff and stable rear chamber made from extruded aluminum is equipped with cooling fins and black anodized for excellent heat transfer and high power handling. The chassis is precision moulded from glass fibre reinforced plastic, and its front design offers optimum radiation conditions.
Please note the downloadable datasheet is for the 27FDNFC/GW H1462 version with ferrofluid. The datasheets for this model (without ferrofluid) are identical.
|Seas Driver Range||Seas Prestige|
|Nominal Impedance||6 ohms|
|Nominal Power RMS||90|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||750 Hz|
|Sensitivity (2.83V/1m)||90.5 dB|
|Nominal Rdc||4.80 ohms|
