Product Description
Details

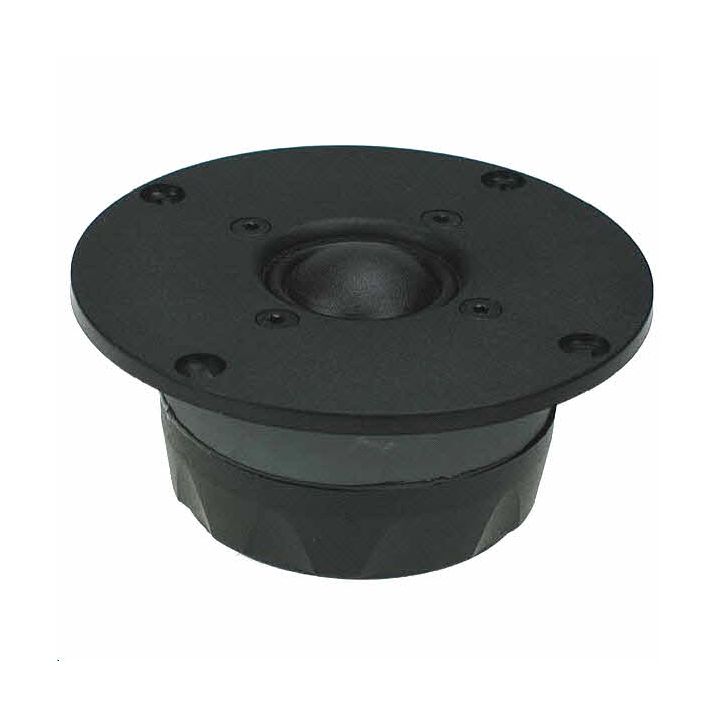

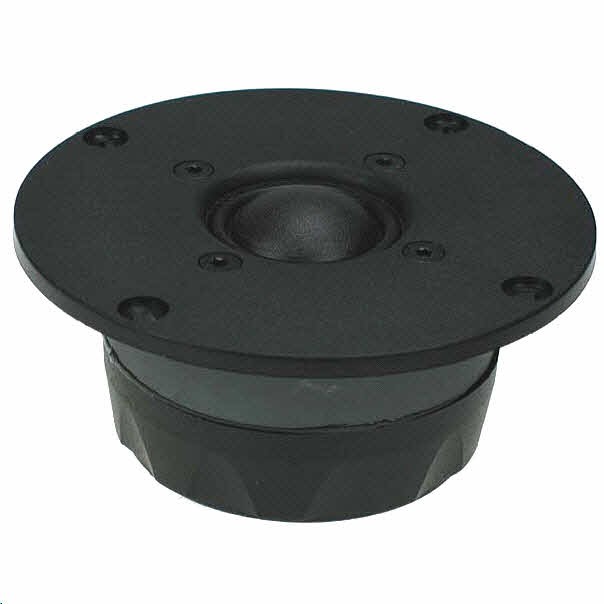

Seas 27TDC H1149-06 Tweeter is a Prestige Series 26mm 6ohm High Definition precoated fabric dome tweeter with soft wide Sonomax low resonance high linearity polymer surround, together with a Sonotex precoated lightweight fabric diaphragm with high consistency and excellent stability against variations in air humidity.
The voice coil windings are wound on an aluminum former with ventilation to reduce compression/internal air flow noise. No Ferrofluid.
A rigid rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.
The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 6 ohms |
| Nominal Power RMS | 55 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 550 Hz |
| Sensitivity (2.83V/1m) | 90.0 dB |
| Nominal Rdc | 4.80 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
