Product Description
Details

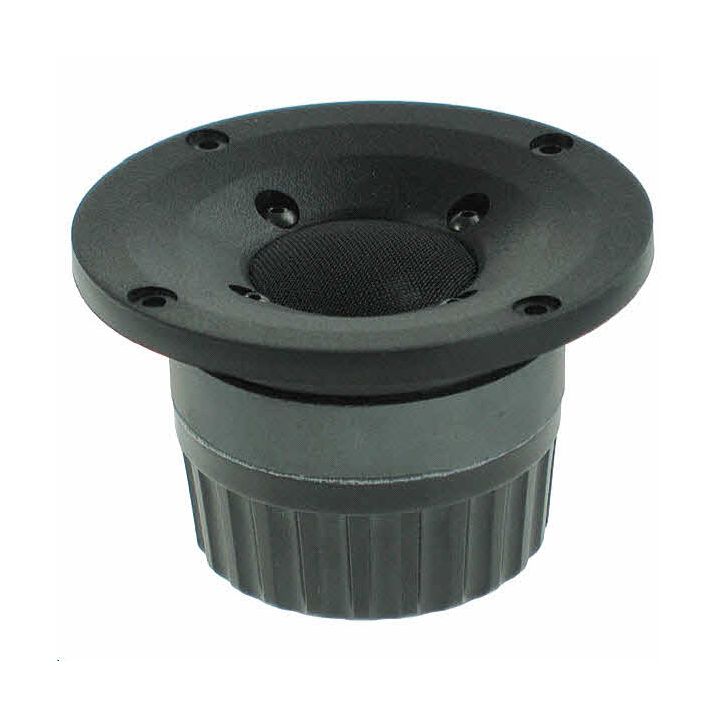

Seas 27TBCD/GB-DXT H1499-06 Tweeter is a High Definition aluminium/magnesium alloy dome tweeter with DXT® lens. An optimally shaped dome and a wide SONOMEX surround ensure excellent performance and consistency. A fine mesh grid protects the diaphragm.
The compensation magnet increases sensitivity and a rigid rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.
This revolutionary DXT® tweeter solves several well-know issues regarding directivity and off-axis response, integration with midrange units and baffle diffractions.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 6 ohms |
| Nominal Power RMS | 150 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 900 Hz |
| Sensitivity (2.83V/1m) | 92.0 dB |
| Nominal Rdc | 4.80 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
