Product Description
Details

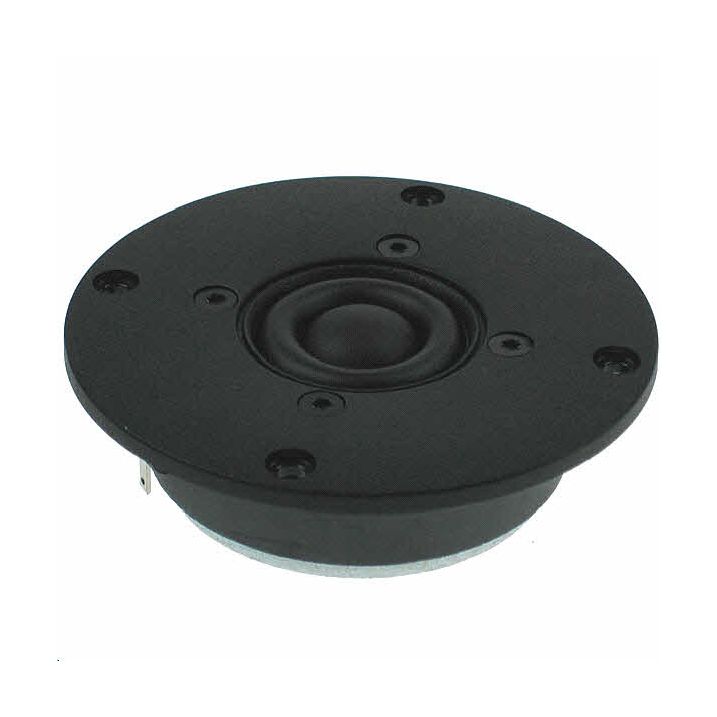

Seas 22TFF H1280-06 Tweeter is a Prestige Series19mm 6ohm High Definition soft dome tweeter with a wide surround combining the high frequency dispersion of a ¾” dome with the low frequency characteristics of a 1” dome.
The one-piece Sonomex dome and surround allows for very tight production tolerances and high consistency, with a smooth and extended frequency response. The voice coil windings immersed in ferro fluid for increased power handling capacity and reduced compression at high power levels.
The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Seas Driver Range | Seas Prestige |
---|---|
Nominal Impedance | 6 ohms |
Nominal Power RMS | 90 |
Vas ( l) | - |
Nominal Free Air Resonance Fs | 1050 Hz |
Sensitivity (2.83V/1m) | 91.0 dB |
Nominal Rdc | 4.90 ohms |
Qes | - |
Qms | - |
Qts | - |
