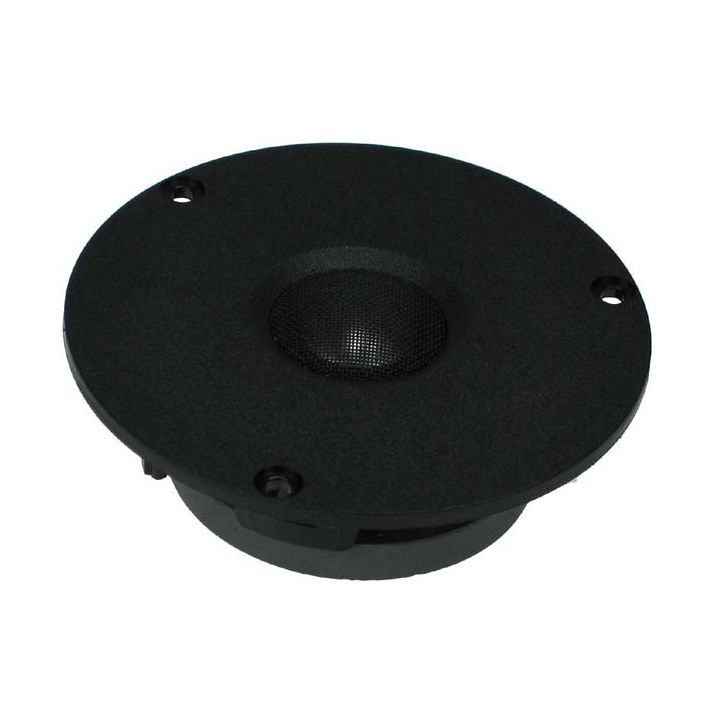

Seas 19TAFD/G H0532-08 Tweeter is a Prestige Series19mm High Fidelity dome tweeter with extremely smooth and extended frequency response. An aluminum diaphragm and Sonotex suspension gives an excellent low fundamental frequency ( Fs) .
The Double Magnet assembly reduces stray fields around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity.
A fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.
Voice coil windings are immersed in ferrofluid increasing short term power handling capacity and reducing compression at high power levels.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 90 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 1700 Hz |
| Sensitivity (2.83V/1m) | 88.0 dB |
| Nominal Rdc | 6.20 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
