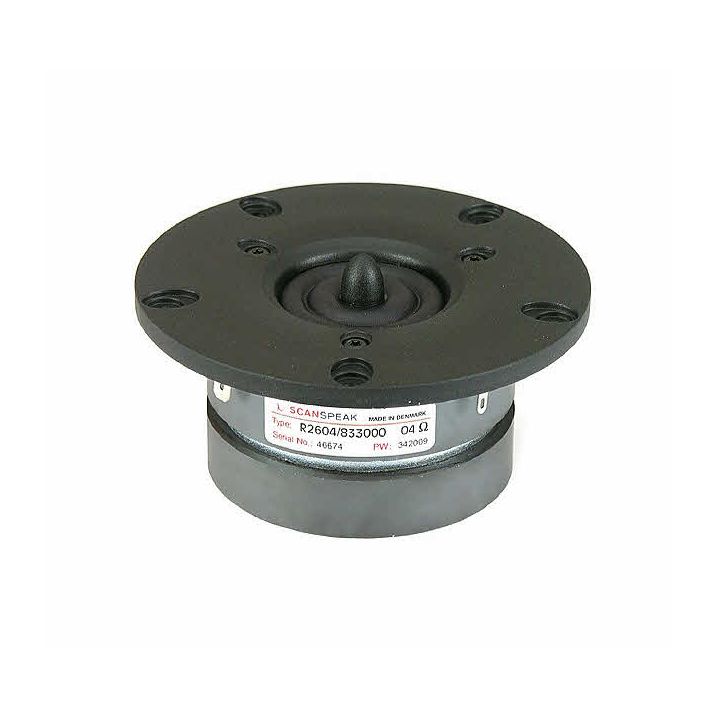

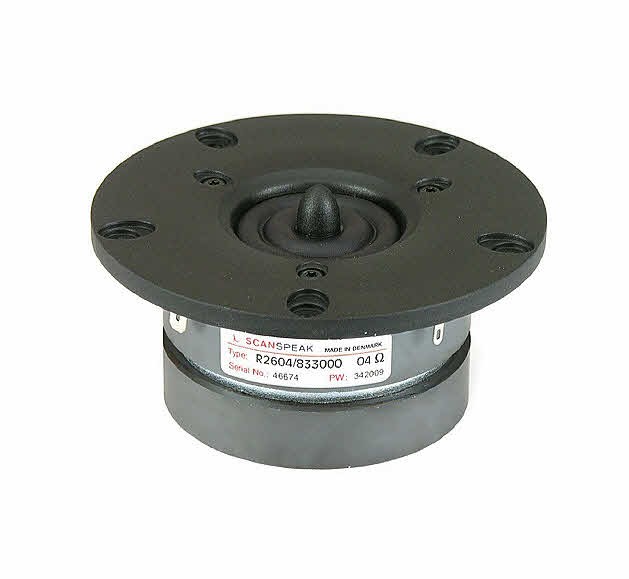

Scanspeak R2604/833000 Tweeter, a Discovery Range tweeter. Dual Ring Radiator Textile Diaphragm.
Featuring a Wave-Guide Centre Plug, an excellent extended Frequency Response to 40Khz, low distortion, wide dispersion and a very low Fs at 450 Hz.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Discovery |
|---|---|
| Nominal Impedance | 4 ohms |
| Nominal Power RMS | 100W |
| Vas ( l) | 0.02 l |
| Nominal Free Air Resonance Fs | 440 Hz |
| Sensitivity (2.83V/1m) | 92.0 dB |
| Nominal Rdc | 3.6 ohm |
| Qes | 0.46 |
| Qms | 2.18 |
| Qts | 0.38 |
