SKU: D3404/552000 ELLIPTICOR

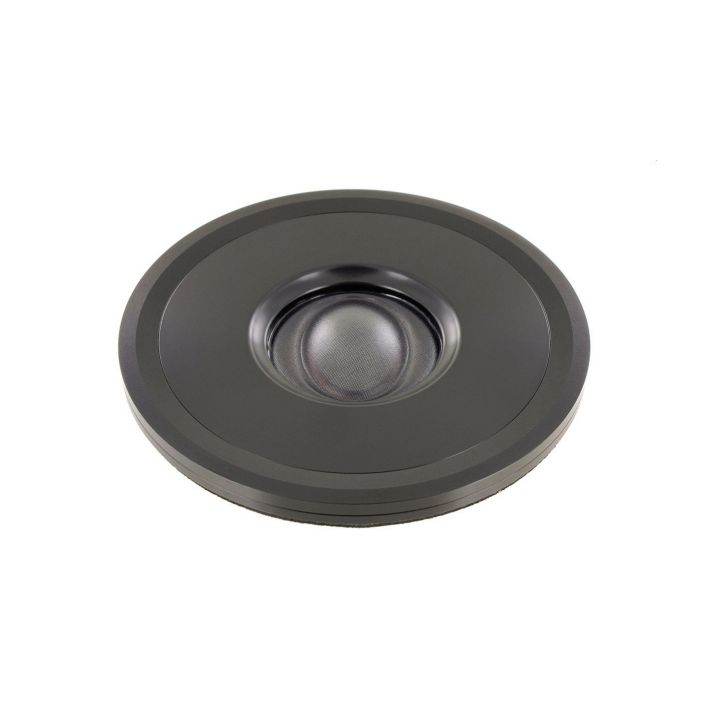

Scanspeak D3404/552000 ELLIPTICOR Tweeter, £415.00 excl. VAT, elliptical 28/39mm voice coil, v low distortion, excellent transient response.

Availability: In stock

Excl. Vat: £415.00 Incl. Vat: £498.00
Product Description


    Scanspeak D3404/552000 ELLIPTICOR Tweeter, a design "first", the first tweeter of Scanspeak's outstanding new Ellipticor Range. Stunning new design moving away from the long tradition of circular motor structures and their inherent breakup behavior - one of its key features is an elliptical 28/39mm voice coil and magnet gap giving superb vocal rendition and excellent imaging. Very low distortion, excellent transient response. 6 mounting holes hidden by interchangeable cover. Low Fs, rear chamber design that eliminates reflections and resonances.

    This tweeter features the SD Air-Circ symmetric drive motor system. Excellent wide dispersion from the elliptical surround.

    Delivery is normally 7-10 working days if not in stock. Supplied in pairs (2 units) only.

    A Product Datasheet is available below.

    Scanspeak D3404/552000 datasheet

Additional Information

    Additional Information

    Scanspeak Range Scanspeak Ellipticor
    Nominal Impedance 4
    Nominal Power RMS -
    Vas ( l) -
    Nominal Free Air Resonance Fs 475
    Sensitivity (2.83V/1m) 97 dB
    Nominal Rdc 3
    Qes 0.63
    Qms 5.25
    Qts 0.57
